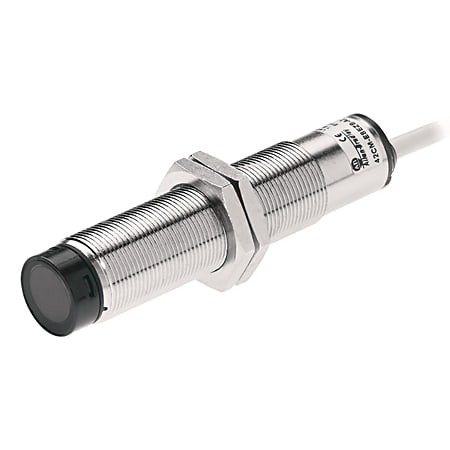

Cylindrical 18 mm Metal Photoelectric Sensor
Produktnummer: 42CM-B2LPBC-D4
Produktstatus:
inkl. mva.
18 mm Metal Sensor, 18 mm Cylindrical, Background Suppression, Visible Red, Not Adjustable Sensitivity, PNP, DC LO or DO Selectable, 4 PinMicro Quick Disconnect, Metal, 18mm Mount, 0.50 ms, 50 mm Operating Distance, 50 mm Sensing Distance, 4-pin DC Micro
Egenskaper for produkt/familie
- Output energized lighted status indicator
- Reverse polarity protection
- Five sensing modes
- 70;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red LED |
| Output | Source (PNP) |
| Connection | 4-pin DC Micro QD |
| Sensing Range | 50mm (2in) |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Maximum Sensing Distance | 50mm (2in) |
| Connection Type | 4-pin DC Micro QD |
| Sensitivity Adjustment | No Adjustment |
| Sensing Mode | Background Suppression |
| Light Source | Visible Red LED |
| Output Type | Source (PNP) |
| Lengde | 0.991 |
| Høyde | 15.189 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42CM_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42cm_qd Filtype: application/x-zip-compressed |
Last ned | |
|
2D Dimension Drawing (DWG/DXF) Filnavn: 42CM.dwg Filtype: image/vnd.dwg |
Last ned |
