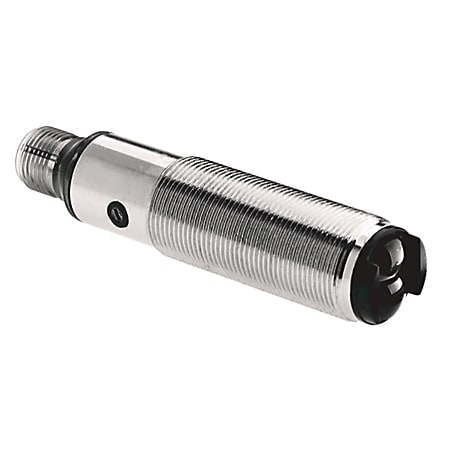

Cylindrical 18 mm Metal Laser Sensor
inkl. mva.
Egenskaper for produkt/familie
- Class I visible laser
- Teach button
- 18 mm cylindrical industry standard package
- Metal housing for heavy duty industrial applications
- Small spot size of 0.1 mm @ 100 mm sensing distance
- Short circuit and reverse polarity protection
Spesifikasjoner | |
---|---|
Connection | 4-pin DC Micro QD |
Output | Source (PNP) |
Sensing Beam | Laser (LaserSight) |
Sensing Range | 30m (90ft) |
Connection Type | 4-pin DC Micro QD |
Sensitivity Adjustment | Teachable |
Output Type | Source (PNP) |
Light Source | Red Laser |
Sensing Mode | Polarized Retroreflective |
Maximum Sensing Distance | 30m (90ft) |
Lengde | 12.395 |
Høyde | 3.099 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
3D STEP Model (STP) Filnavn: 42cm_qd Filtype: application/x-zip-compressed |
Last ned | |
Photo Filnavn: PHEL42CM_Laser_PH.jpg Filtype: image/png |
Last ned | |
2D Dimension Drawing (DXF/DWG) Filnavn: 42CM_LASER.dwg Filtype: image/vnd.dwg |
Last ned |
