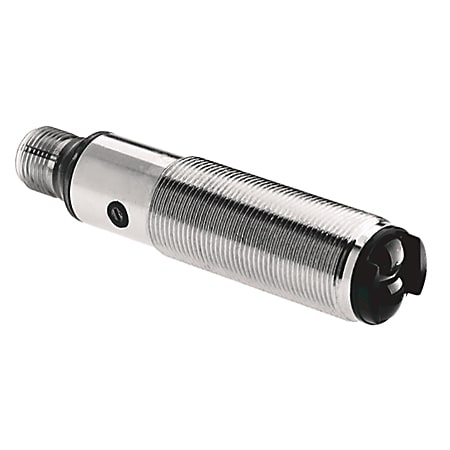

Cylindrical 18 mm Metal Laser Sensor
Produktnummer: 42CM-P8MPB-A2
Produktstatus:
inkl. mva.
18 mm Metal Sensor, 18 mm Cylindrical, Polarized Retroreflective, Laser, Teach Button, PNP, DC Complementary LO/DO, 2 m (6.5 ft) Cable, Metal, 18mm Mount, 0.70 ms, 3 mm Minimum Sensing Distance, 35000 mm Operating Distance, 30000 mm Sensing Distance
| Spesifikasjoner | |
|---|---|
| Sensitivity Adjustment | Teachable |
| Output Type | Source (PNP) |
| Sensing Mode | Polarized Retroreflective |
| Connection Type | 2m (6.5ft) cable |
| Light Source | Red Laser |
| Maximum Sensing Distance | 30m (90ft) |
| Lengde | 15.999 |
| Høyde | 2.499 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42cm_cable Filtype: application/x-zip-compressed |
Last ned | |
|
2D Dimension Drawing (DXF/DWG) Filnavn: 42CM_LASER.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42CM_Laser_PH.jpg Filtype: image/png |
Last ned |
