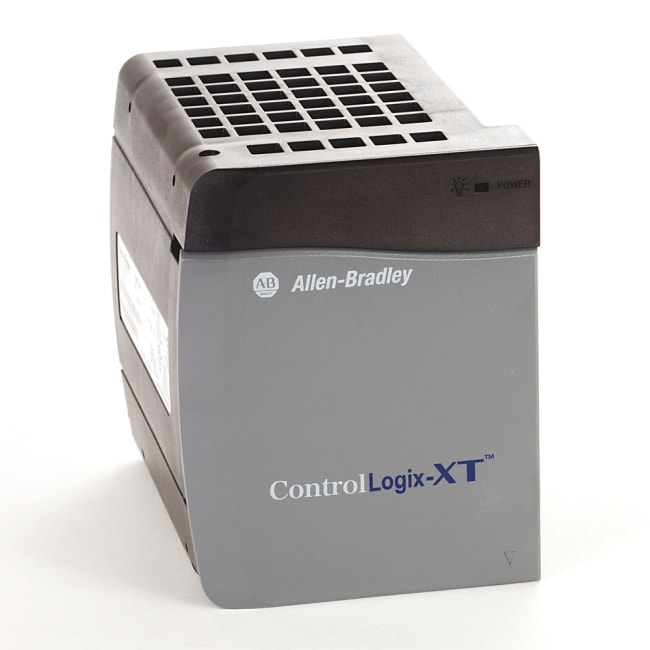

ControlLogix XT Power Supply
SKU: 1756-PAXT
Product status:
incl. VAT
ControlLogix, 120/240V AC Power Supply, Logix XT
Power Supply, ControlLogix, AC, 85-265V AC Input, 5V at 8 A Output, Extended Temperature
| Specifications | |
|---|---|
| Product Type | Power Supplies |
| Sub Brand | ControlLogix |
| Type | Power Supply |
| Special Features | Extended Temperature Capability |
| Mounting | Chassis |
| Input Voltage | 85...265VAC |
| Enclosure | None ( Open-Style) |
| Display | Status LEDs |
| Operating Temperature | -25...70 °C (-13...158 °F) |
| Output Voltage | 5vdc @ 8A, 3.3vdc @ 4A, 1.2vdc @ 1.5A, 24vdc @ 1.75A |
| Wattage | 42W Output Power |
| Frequency Rating | 47...63Hz |
| Connection Cables | None required |
| Chassis Power Supplies (One 1756 chassis supply is required for each 1756 chassis) | ControlLogix, 120/240V AC Power Supply, Logix XT |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85044082 |
| Lengde | 22.71 |
| Høyde | 16.89 |
| Livssyklus | Active |
