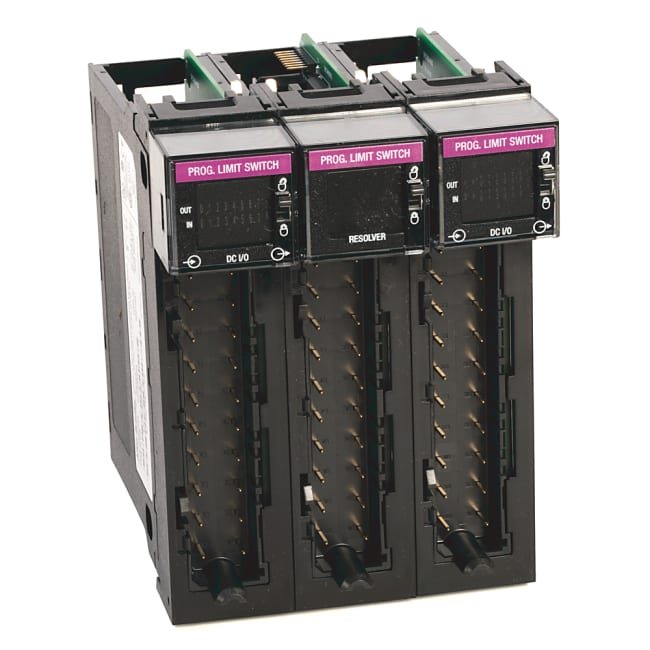

ControlLogix Programmable Limit Switch

Produktnummer: 1756-PLS
Produktstatus:


inkl. mva.

Programmable Limit Switch Module (3-20 Pin)

Programmable Limit Switch Module, ControlLogix, 16 DC Inputs, 16 Current Sourcing DC Outputs, With Resolver Interface
Spesifikasjoner
Product Type I/O Modules
Sub Brand ControlLogix
Type Specialty
Special Features Resolver Interface with .088 degree resolution
Mounting Chassis
Enclosure None (open-style)
Input Signal Resolver: 2V rms Reference Output (differential pair)
Output Signal Digital Outputs: 10-31VDC
Isolation 250 V continuous between groups
Display Input, Output and Communication Status, Module Health
Operating Temperature 0...60 °C (32...140 °F)
Removable Terminal Block Qty 3 of 1756-TBNH or 1756-TBSH
Specialty Modules (Please select number of Removable terminal Blocks as addded in the list.) Programmable Limit Switch Module (3-20 Pin)
Opprinnelsesland US
Tolltariffnummer 85371098
Lengde 19.51
Høyde 11.81
Livssyklus Active
