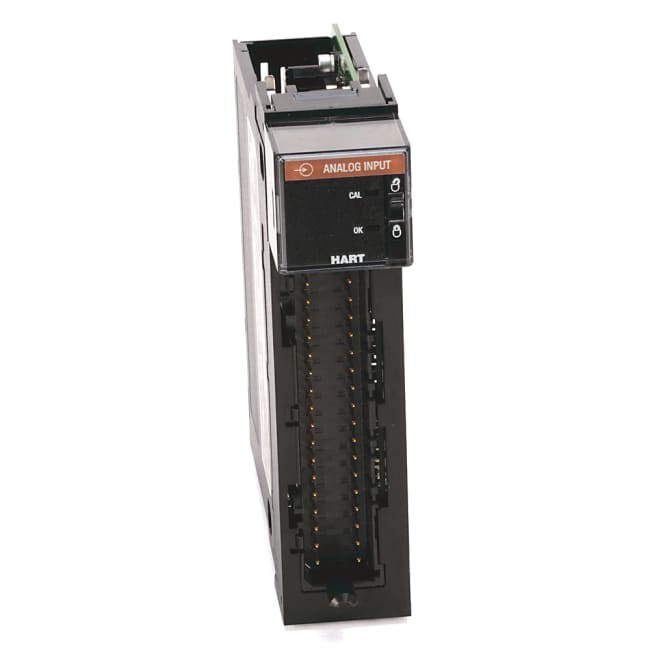

ControlLogix 8 Point A/I Module HART
SKU: 1756-IF8H
Product status:
incl. VAT
Analog Differential Input HART - Current/Voltage 8 Pts (36 Pin)
Input Module, ControlLogix, Analog, 8 Point, Differential Inputs, HART Protocol, Current and Voltage
| Specifications | |
|---|---|
| Product Type | I/O Modules |
| Sub Brand | ControlLogix |
| Type | Analog Input Module |
| Special Features | Supports HART Protocol |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Input Signal | +/- 10V, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA |
| Isolation | 50 V continuous between inputs |
| Display | Module Health, In Calibration Mode |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Removable Terminal Block | 1756-TBCH or 1756-TBS6H |
| Analog Input Modules (Please select number of Removable terminal Blocks as addded in the list.) | Analog Differential Input HART - Current/Voltage 8 Pts (36 Pin) |
| Opprinnelsesland | >1 |
| Tolltariffnummer | 85389099 |
| Lengde | 21.692 |
| Høyde | 5.41 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|
