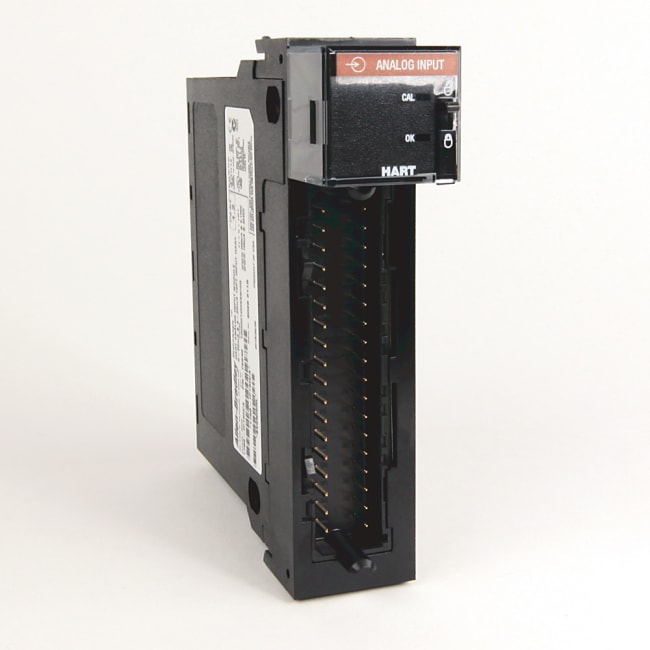

ControlLogix 16 Point A/I Module HART
Produktnummer: 1756-IF16H
Produktstatus:
inkl. mva.
Analog Input - ControlLogix 16 Point HART
Input Module, ControlLogix, Analog, 16 Point, Differential Inputs, HART Protocol, Current
| Spesifikasjoner | |
|---|---|
| Product Type | I/O Modules |
| Sub Brand | ControlLogix |
| Type | Analog Input Module |
| Special Features | Supports HART Protocol |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Input Signal | 0-20mA, 4-20mA |
| Isolation | None between channels (Single Ended) |
| Display | Module Health, In Calibration Mode |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Removable Terminal Block | 1756-TBCH or 1756-TBS6H |
| Analog Input Modules (Please select number of Removable terminal Blocks as addded in the list.) | Analog Input - ControlLogix 16 Point HART |
| Opprinnelsesland | >1 |
| Tolltariffnummer | 85389099 |
| Lengde | 5.199 |
| Høyde | 17.399 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1756-td002_-en-e.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
User Manual - (3) Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
User Manual - (2) Filnavn: es-ES Filtype: application/pdf |
Last ned | |
|
User Manual - (4) Filnavn: it-IT Filtype: application/pdf |
Last ned | |
|
User Manual - (1) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Product Profile Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
User Manual Filnavn: de-DE Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
User Manual - (5) Filnavn: pt-BR Filtype: application/pdf |
Last ned |
