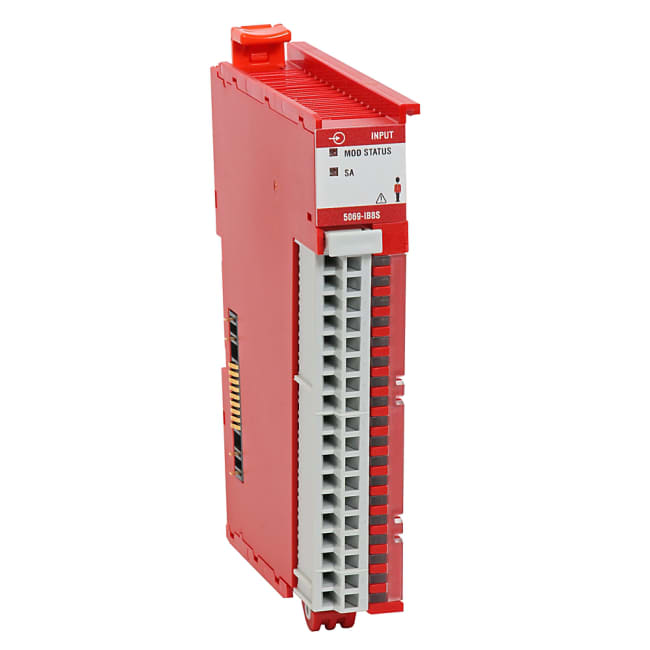

Compact I/O 8 Channel Safety Input Module Conformal Coated

Produktnummer: 5069-IB8SK
Produktstatus:


inkl. mva.

Compact5000 8 Channel 24VDC Sink Safety Input Module conformal Coated

Egenskaper for produkt/familie

  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide enhanced diagnostics information
  • Use the slim 5069-AENTR for small space requirements
  • Provide faster safety reaction time
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Provide high-speed backplane communications for faster transfer rates
  • Support up to 31 I/O modules per controller or adapter
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Support up to 31 I/O modules
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Provide improved status indicators to monitor and troubleshoot systems
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Rated up to SIL3/PLe
Spesifikasjoner
Category IO Modules
Category Digital
Type Safety Input
Voltage 24V DC
No of Inputs/Outputs 8
Catalog Number Compact 5000 8 Channel 24VDC Safety Input Module - Conformally Coated
Note The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 1pcs
Lengde 10.542
Høyde 14.457
Livssyklus Active
