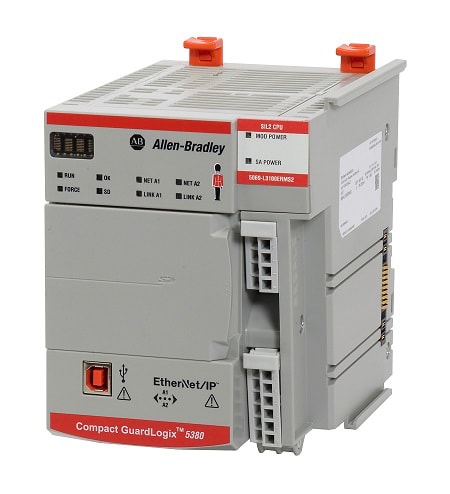

Compact GuardLogix SIL2 0.6/0.3M

Produktnummer: 5069-L306ERS2
Produktstatus:


inkl. mva.

Compact GuardLogix5380 Safety Controller, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os

Compact GuardLogix5380 Safety Controller, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os

Egenskaper for produkt/familie

  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Provide high-speed backplane communications for faster transfer rates
  • Include dual configurable ports that supports Dual IP address
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Support up to 31 I/O modules per controller or adapter
  • Support up to 31 Bulletin 5069 Compact I/O™ modules
  • Ideal for small to mid-size applications that require low axis motion and I/O point counts
  • Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control
  • Provide enhanced diagnostics and troubleshooting
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Support up to 31 I/O modules
  • Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
  • Rated up to SIL3/PLe
  • Use the slim 5069-AENTR for small space requirements
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide improved status indicators to monitor and troubleshoot systems
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Provide enhanced diagnostics information
  • Offer Integrated Motion on EtherNet/IP up to 32 axes
  • Provide faster safety reaction time
  • Offer controller functions optimized for maximum system performance
Spesifikasjoner
Category Controllers
Controller Capacity 0.6 MB
I/O Modules (max) 8
Ethernet/IP Nodes supported (max) 16
Integrated Motion None
Catalog Number Controller, Compact GuardLogix 5380, SafetySIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os
Note The 5380 controllers did not come with the removable terminals. It is necessary to purchase the 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kits separately to use the 5380 controllers
Tolltariffnummer 85371091
Lengde 2.286
Høyde 6.35
Livssyklus Active

Compact I/O Power terminal RTB kit Screw

5069 Compact I/O Power terminal RTB kit for both 4 and 6 pin Screw type
5069-RTB64-SCREW


Compact I/O Power terminal RTB kit Spring

5069 Compact I/O Power terminal RTB kit for both 4 and 6 pin Spring type
5069-RTB64-SPRING
