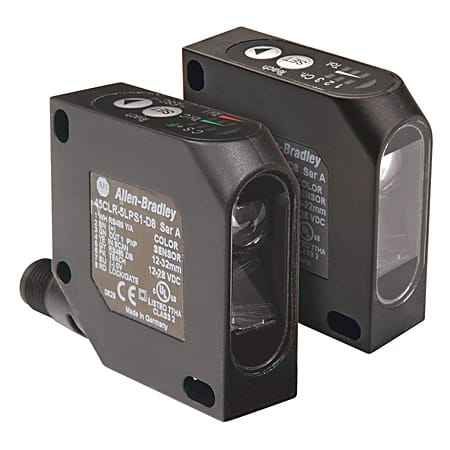

ColorSight Color & Contrast Sensor
Produktnummer: 45CLR-5JPC3-D8
Produktstatus:
inkl. mva.
Photoelectric Sensor, Diffuse, 18-22 mm Sensing Range, White LED, 3 PNP Output, 5X1 mm Spot, 8 Pin Micro M12 Integral Quick DisconnectConnector, Teachable Channels, 45CLR
Egenskaper for produkt/familie
- 80;889D-F8AB-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | White LED |
| Voltage Rating | 12-28V DC |
| Output | 3 PNP Outputs |
| Connection | 8-pin DC Micro QD |
| Light Source | White LED |
| Operating Voltage | 12-28V DC |
| Output Function | LO |
| Output Type | 3 PNP Outputs |
| Spot Size | 5 x 1 mm (0.19in) @ 22mm (0.86in) Spot Size (+/- 2mm tolerance) |
| Sensing Range | 18 - 22mm (0.70 - 0.86in) |
| Connection Type | 8-pin DC Micro QD |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Black, Unshielded, 5 m |
| Lengde | 23.393 |
| Høyde | 7.188 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45clr-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D Dimension Drawing (DXF/DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Specification Sheet Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
