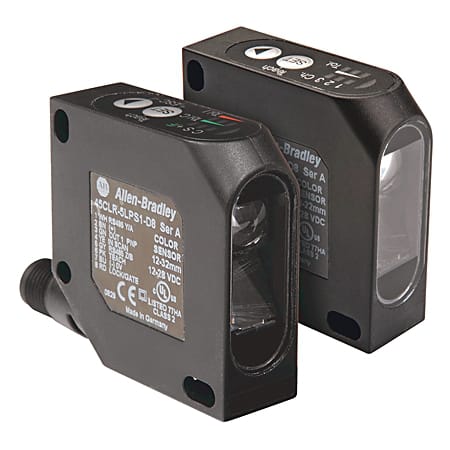

ColorSight Color & Contrast Sensor
Produktnummer: 45CLR-5JPC2-D8
Produktstatus:
inkl. mva.
Photoelectric Sensor, Diffuse, 15-30 mm Sensing Range, White LED, 3 PNP Output, 2X2 mm Spot, 8 Pin Micro M12 Integral Quick DisconnectConnector, Teachable Channels, 45CLR
Egenskaper for produkt/familie
- 80;889D-F8AB-5
| Spesifikasjoner | |
|---|---|
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Black, Unshielded, 5 m |
| Sensing Range | 15 - 30mm (0.59 - 1.18in) |
| Output Function | LO |
| Connection Type | 8-pin DC Micro QD |
| Output Type | 3 PNP Outputs |
| Light Source | White LED |
| Operating Voltage | 12-28V DC |
| Spot Size | 2 x 2 mm (0.07in x 0.07) @ 22mm Spot Size (+/- 5mm tolerance) |
| Sensing Beam | White LED |
| Connection | 8-pin DC Micro QD |
| Output | 3 PNP Outputs |
| Voltage Rating | 12-28V DC |
| Lengde | 24.384 |
| Høyde | 6.096 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45clr-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Specification Sheet Filnavn: 45CLR%20CatPgs.pdf Filtype: application/pdf |
Last ned | |
|
2D Dimension Drawing (DXF/DWG) Filnavn: 45CLR.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 45bpd_down Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: PHEL45CLR_PH.jpg Filtype: image/png |
Last ned |
