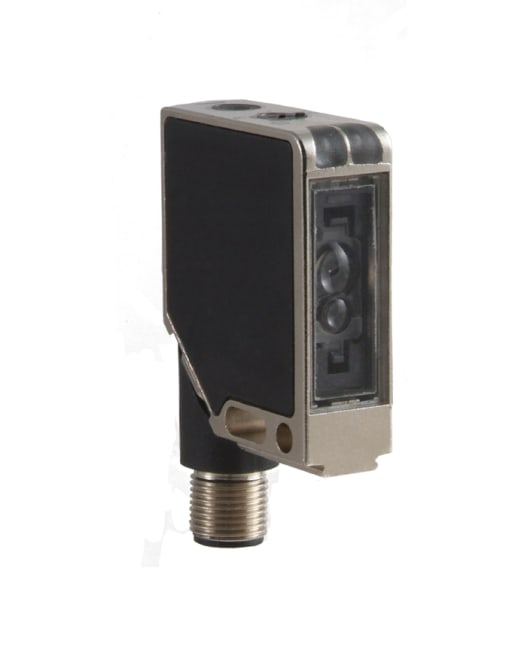

Color Registration Mark Sensor, 3 mm x 1 mm ( Horizontal)
Produktnummer: 45CRM-4LHT2-D4
Produktstatus:
inkl. mva.
Color Registration Mark, 45CRM, Diffuse, RGB, Light Operate - Dark Operate, Dual IO-Link Push-Pull, Local <(>&<)> Remote Teach, 9-13mm Range, Alternate Horizontal Lens, 4-Pin M12 QD,
Egenskaper for produkt/familie
- Offers dynamic teach, static teach, or IO link configurable setup methods
- Incorporates embedded IO-Link communication protocol to help minimize downtime and increase productivity
- Provides adjustable-position DC Micro (M12) quick disconnect (QD) cordsets
- IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
- Includes 2 x PNP/NPN (push-pull) complementary outputs
- Offers compact size (49 mm x 42 mm x 15 mm)
- Provides fast 40 μs response time
- 130;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Nominal Sensing Distance | 11 mm ± 2 mm (0.43 ± 0.079 in.) |
| Operating Environment | IP67 |
| IO-Link Enabled | Yes |
| Operating Temperature | -20...60C (-4...140F) |
| Response Time | 40us |
| Termination Type | Micro QD (DC) |
| Output Type | 2 x NPN/PNP Complementary Outputs |
| Light Source | 3 Visible LEDs (Red, Green, Blue) |
| Operating Voltage | 10...30V DC (18...30V DC when operating in IO-Link mode) |
| Light Spot Orientation | 3 mm x 1 mm ( Horizontal) |
| BulletinNo | 45CRM Color Registration Mark |
| Output Mode | Light or Dark Operation |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 11.506 |
| Høyde | 2.489 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45crm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Catalog Pages Filnavn: 45CRM%20Cat%20Pages.pdf Filtype: application/pdf |
Last ned | |
|
2D Drawing (DXF/DWG) Filnavn: 45CRM-4LHTx-D4.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: 45CRM-down-Pos5a.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 45_crm Filtype: application/x-zip-compressed |
Last ned |
