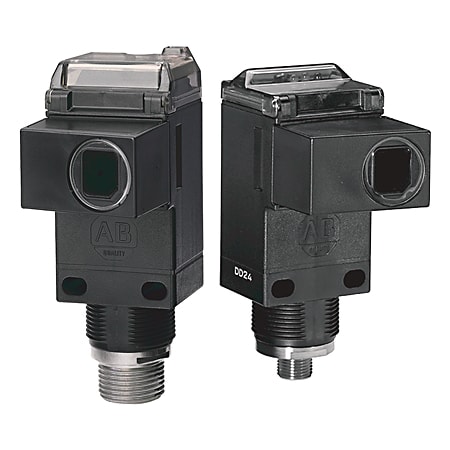

ClearSight 9000 Clear Object Detection Sensor
Produktnummer: 42GRC-9203-QD1
Produktstatus:
inkl. mva.
9000 Series, Standard ON/OFF, Clear Object, AC/DC - MOSFET, 4-Pin AC/DC Micro QD
| Spesifikasjoner | |
|---|---|
| Sensing Range | 1.2m (4ft) |
| Voltage Rating | 45-264V DC / 40-264V AC 50/60 Hz |
| Special Features | ClearSight Standard |
| Response Time | 2 ms |
| Product Family | ClearSight 9000 |
| Output Type | Solid State Isolated N.O. |
| Connection Type | 4-pin AC Micro |
| Operating Voltage | 45-264V DC / 40-264V AC 50/60 Hz |
| Maximum Sensing Distance | 1.2m (4ft) |
| Sensing Mode | ClearSight Standard |
| Output Energized | Light/Dark Selectable |
| Lengde | 16.129 |
| Høyde | 7.62 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: Series9000_microqd Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: 42G_Clearsight_PH.jpg Filtype: image/png |
Last ned | |
|
AutoCad Drawing 2D (DXF) Filnavn: Series%209000.dwg Filtype: image/vnd.dwg |
Last ned |
