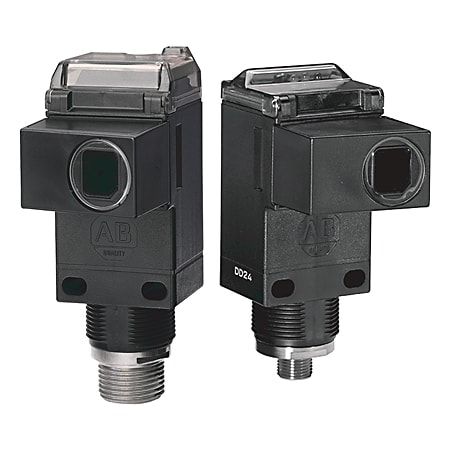

ClearSight 9000 Clear Object Detection Sensor
Produktnummer: 42GRC-9200-QD
Produktstatus:
inkl. mva.
Photoelectric Sensor, Series 9000, Clear Object Detection, Visible RedLED, Selectable Light Operate - Dark Operate, PNP or NPN Output, Adjustable Sensitivity, 1.2 m Sensing Range, 4-pin DC Micro (M12)Integral QD.
Egenskaper for produkt/familie
- IP69K and ECOLAB certified
| Spesifikasjoner | |
|---|---|
| Sensing Range | 1.2m (4ft) |
| Special Features | ClearSight Standard |
| Voltage Rating | 10-40V DC |
| Sensing Mode | ClearSight Standard |
| Output Energized | Light/Dark Selectable |
| Connection Type | 4-pin DC Micro |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Maximum Sensing Distance | 1.2m (4ft) |
| Operating Voltage | 10-40V DC |
| Product Family | ClearSight 9000 |
| Response Time | 1 ms |
| Lengde | 18.491 |
| Høyde | 8.407 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: series9000_miniqd Filtype: application/x-zip-compressed |
Last ned | |
|
AutoCad Drawing 2D (DXF) Filnavn: Series%209000.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: 42G_Clearsight_PH.jpg Filtype: image/png |
Last ned |
