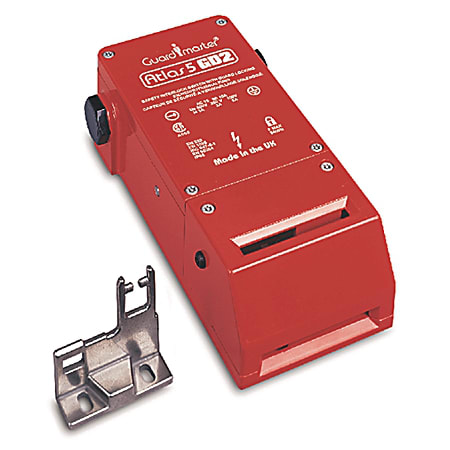

Atlas 5 230V AC/DC 1/2"NPT m/std.actuator
SKU: 440G-L07247
Product status:
incl. VAT
Guardlock Switch, Atlas 5, Left Hand Key Lock, 230V ACDC, 2 N.C. 1 N.O., 2 N.C. Safety, 2 N.O Aux, 2 N.C. Safety Contacts, Standard Actuator, 2 N.O. Auxillary Contacts, Guardlocking Switch, M20 Conduit, 1/2in. NPT adptr, Die Cast Alloy (red)
Properties for product/family
- High locking force of 5000 N (1124 lb)
- Patented self-aligning head
- Mechanical lock
- Heavy duty die-cast alloy housing
- 100;889D-F8NB-5
- 100;889D-F5NC-5
| Specifications | |
|---|---|
| BBM only | N/A |
| Product Family | 440G Atlas 5 |
| Model Type | LH Key Lock |
| Contacts (Safety/Auxiliary) | 2 Normally Closed, 1 Normally Open |
| Solenoid Contacts | 2 Normally Closed 1 Normally Open |
| Solenoid Voltage | 230V AC/DC |
| Actuator | Standard |
| Conduit Entry / Connection Type | 1/2 in NPT Adapter |
| Holding Force (Fzh) | 3850N (865 lbs) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 23.495 |
| Høyde | 8.636 |
| Livssyklus | Active |
