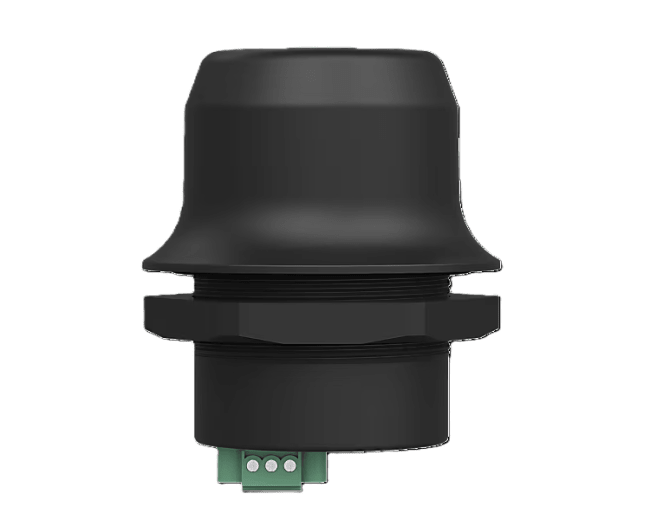

Anybus Wireless Bolt Ethernet RJ45 PoE
Anybus Wireless Bolt - Ethernet RJ45 PoE - Black version, ATEX Zone 2 (Gas), -40 to 65 °C operating temp, IP66, IP67
The Anybus Wireless Bolt Ethernet RJ45 PoE - Black connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle. PoE support simplifies installation.
How to use Wireless Bolt with Ewon Cosy+
Features and benefits
Industrial design
Withstands harsh environments thanks to its IP66/67-rated enclosure and wide operating temperature range. Certified for UL Haz.Loc. Class 1/ Div2 and ATEX Zone 2 (Gas).
High-speed, roaming, dual network bridging
Provides fast roaming (IEEE 802.11r) and high link speeds (IEEE 802.11n). Simultaneous Bluetooth and Wireless LAN operation allows bridging between the two networks for enhanced connectivity.
Designed for multi-directional applications
Ideal for establishing wireless connections to roaming machines, such as AGVs, or to control cabinets from any angle.
Easy access to data
Wirelessly connect to the Anybus Bolt and easily access the machine or cabinet. Configure the PLC or machine without halting or hindering production.
Quick start up and high determinism
Ideal for connecting field-level devices that require short start-up times and high determinism.
All-in-one wireless communication
All-in-one package featuring a connector, communication processor, and integrated antenna in the same unit. Use a single cable for both power and communication with Power over Ethernet (PoE).
Supports Industrial Ethernet, TCP, & UDP protocols
Communicates over Industrial Ethernet, supporting protocols such as BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP, as well as all TCP and UDP-based protocols.
Low total cost of ownership
Thanks to the integrated design of the antenna and communication module, there's no need for additional antenna or accessory purchases.
Easy to install
Attach the Wireless Bolt directly onto cabinets or machines to look like an integrated part of the installation. Or use the Bolt Base Protector mounting kit to install it on a pole, wall, or similar.
Easy to configure
Establish a wireless connection in seconds thanks to the intuitive web-based interface.
Insights into your network
The Command Line Interface (CLI) provides configuration and diagnostic capabilities, offering greater control and insight into your network.
Perfect together!
Fully compatible with Anybus Wireless Bridge, a wireless product designed for point-to-point applications, enabling you to implement comprehensive wireless infrastructure.
