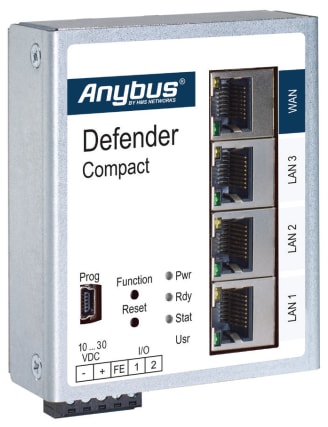

Industrial firewall with 1x 10/100 Mbit WAN port and 3x 10/100 LAN ports that offers protection against attacks by segmenting the production network into manageable and logically separated sections. It supports use-cases including Network Address Translation (NAT), routing, white and blacklisting of IP and MAC address and has an easy to use PLC like programming software specifically designed for operational environments.

Each LAN port can be assigned to its own separate LAN segment via CLI commands (SSH).

For added security managemant via WAN and LAN ports can be disabled so that managemnt can only be performed via the local USB port.

Perpetual License inc. 3Y support

Support & Downloads

Features and benefits

Interfaces
1x WAN and 3x LAN port switch, configurable in transparent bridge mode or NAT/Routing mode with static routes.

PLC Programming Interface
The mbNETFIX Manager Windows software assists the automation user in creating a project and setting up the device. It is designed to resemble the user interface of a PLC programming software.

Network Address Translation
Versatile NAT functionalities, eg 1: 1 NAT, SimpleNAT and port forwarding.

Learning mode
Capability to initially implement in listen mode, you can see the traffic in the graphical user interface (GUI) as spotted by the firewall.

Firewall
MAC address, IP, port and protocol filters for monitoring and restricting data traffic.

Security by design
Security implemented right from the beginning of the design process. Including secure boot and project configurations encrypted and uniquely paired by means of an RSA key.

Technical Specifications

General

Net Weight (g): 235 g
Warranty (years): 3

Certifications & Standards

CE: Yes
Protection Class IP: IP30

Physical Features

Contains Battery: No

Identification & Status

Brand: Anybus
Country of Origin: Germany
HS Code: 8517620000
Dual Usage: No
Export Control Classification Number (ECCN): 5A992.c
Item Number: ABD1004-NATFW
