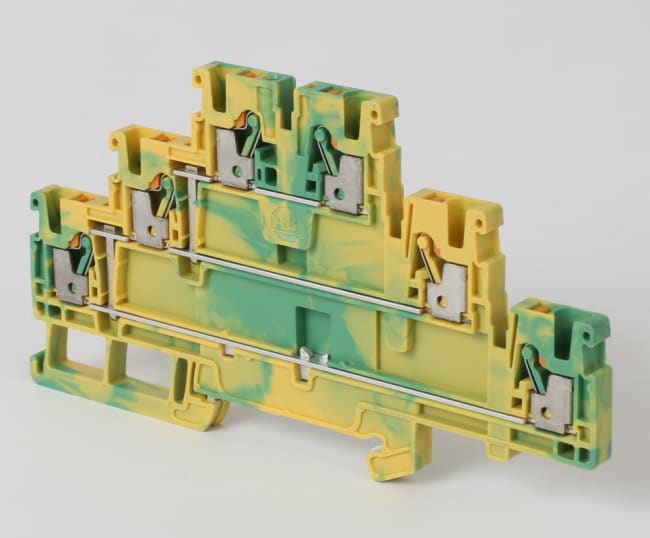

AHF_PUSH-IN TERMINAL BLOCK_PHASE A-2
Produktnummer: 1492-PTG3C
Produktstatus:
inkl. mva.
Terminal Block, Push-in connection, IEC, Triple-Level, Ground, Connected, Feed-Through, 2.5mm, 6 Connection Points, Green/Yellow, Package Qty 50
Egenskaper for produkt/familie
- Offers up to 65% faster installation than screw-type terminal blocks
- Includes easy-to-spot color-coding
- Incurs no strand breakage or turned back strands
- Includes plastic actuators for shock prevention
- Offers ONE-hand, ONE-second insertion
- Provides universally-located test points for fast inspection and easy commissioning
- Includes easy-to-see terminals from the front
- Offers a wide variety of styles
| Spesifikasjoner | |
|---|---|
| Circuit per Block | Single-Circuit |
| Connection Points | 3 Points Red, 3 Points Blue |
| Wiring Diagram | 1492-PTG3C |
| Block Type | Grounding Block |
| Number of Levels | Multi-Level |
| UL/CSA Voltage Rating | 600V AC/DC |
| UL/CSA Current Rating | Not Applicable |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Green/Yellow Mix |
| Wire Range (Rated Cross Section) | 2.5 mm² (AWG 28 - AWG 12) |
| Width | 5.1 mm |
| Lengde | 7.239 |
| Høyde | 0.508 |
| Livssyklus | Active |
