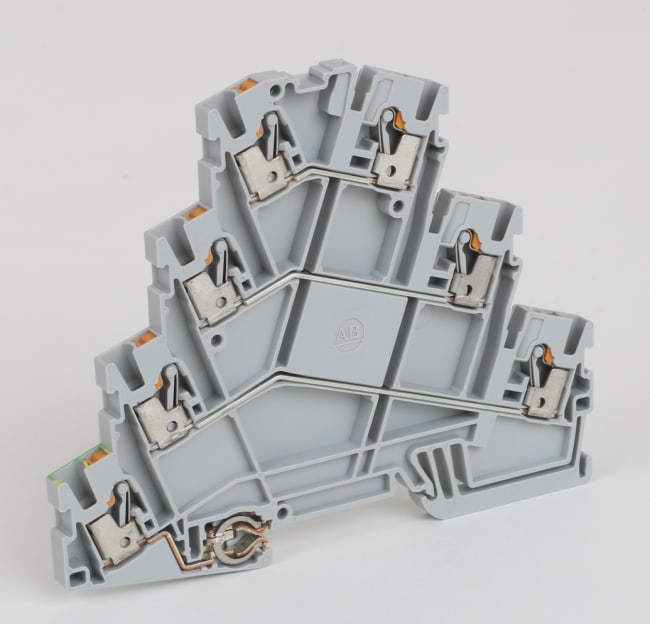

Rekkekl. dytt-inn 4-etasje, 2.5mm2 grå
Produktnummer: 1492-PQ3
Produktstatus:
inkl. mva.
Terminal Block, Push-in connection, IEC, Quadruple Level, Ground, Feed-Through, 2.5mm, 7 Connection Points, 690V, Grey, Package Qty50
| Spesifikasjoner | |
|---|---|
| Wire Range (Rated Cross Section) | 2.5 mm² (AWG 28 - AWG 12) |
| UL/CSA Voltage Rating | 600V AC/DC |
| UL/CSA Current Rating | 20 A |
| Width | 5.1 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| Block Type | Feed-Through & Grounding Block |
| Circuit per Block | Four-Circuits |
| Connection Points | 7 Points - Single Ground Connection on Lowest Level |
| Number of Levels | Multi-Level |
| Wiring Diagram | 1492-PQ3 |
| Lengde | 8.763 |
| Høyde | 0.508 |
| Livssyklus | Active |
