8FE+ 2GE Combo port Unmanaged Switch with VLAN, QoS and BSP
8FE + 2GE Combo Port Unmanaged Industrial Switch with VLAN, QoS and BSP function, 12~48 VDC, -40 to 75°C
8FE + 2GE Combo Port Unmanaged Industrial Switch with VLAN, QoS and BSP function, 12~48 VDC, -40 to 75°C
The EKI-2710E-2CI-A industrial Ethernet switch provides 8 x 10/100M + 2GE Combo ports, offering versatile connectivity for diverse applications.

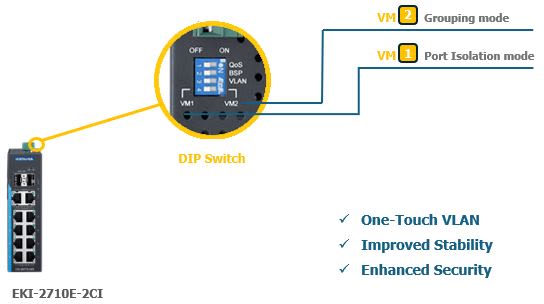

Users can conveniently enable or disable Quality of Service (QoS), broadcast storm protection, and port-based VLAN settings using DIP switches.
Equipped with 12~48 VDC redundant power inputs and pull-down DIN-rail mounting, these switches are designed for reliable performance in industrial environments.
With EMC Level 4 protection, it resists electromagnetic interference, ensuring stable operation even in harsh conditions.
The operating temperature range of -40 to 75°C further enhances its durability.
More information is available here: VLAN segmentation with unmanaged switch
Features
- Provides 8FE+2GE combo port with Auto MDI/MDI-X
- Supports 8 x 10/100 Mbps Auto-Negotiation + 2 x Combo 10/100/1000M Auto-Negotiation
- Supports redundant 12 ~ 48 VDC power input
- EN 61000-6-4, EN 61000-6-2
- Supports DIP Switch Configuration: QoS/BSP/port-based VLAN
- Supports EMC Level 4 protection for extreme outdoor environments
- Supports wide operating temperatures from -40 to 75 °C
- Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
- 5-Year Warranty
| Spesifikasjoner | |
|---|---|
| Ethernet Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Safety | UL62368-1 |
| EMI | CE, FCC, BSMI |
| EMC | EN 61000-6-4, EN 61000-6-2, EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Operating Temperature | -40~ 75°C |
| Operating Relative Humidity | 5 ~ 95% (non-condensing) |
| Power Input | 12~48 VDC (8.4~52.8 VDC), redundant dual inputs |
| Power Connector | 4-pin removable screw terminal (power 1 & power 2) |
| DIP switches | QoS/Broadcast Storm Protection/VLAN |
| Relay output | 1 |
| MTBF | 453 684 hours |
| Warranty | 5 years |
| Produkt oversikt | |
|---|---|
| Switch type | Ikke administrerbar switch med VLAN og QoS |
| Formfaktor | DIN |
| Antall porter | 10 |
