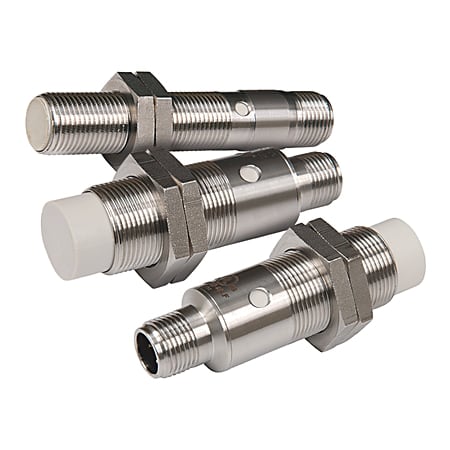

Sensor, Inductive, Food and Beverage, Stainless Steel 316L Barrel, Polyphenylene Sulfide Plastic Face, Unshielded, 8 mm Sensing Range, Complementary Output, PNP, 12 mm Diameter, M12 Micro QD.
Properties for product/family
- IP67, IP68 and IP69K enclosure ratings
- 4-wire operation, complementary N.O. and N.C. outputs
- FDA Certified, PPS sensing face
- Stainless steel 316L barrel
- Applications include:
| Specifications | |
|---|---|
| Body Style | Threaded Stainless Steel 316L Barrel |
| Sensing | Extended Sensing (Unshielded) |
| Nominal Sensing Distance | 8mm (0.31 in.) |
| Output Configuration | N.O. and N. C., Source (PNP) |
| Barrel Diameter | 12mm |
| Connection Type | Micro Quick-Disconnect (DC) |
| Lengde | 3.599 |
| Høyde | 4.699 |
| Livssyklus | Active |
