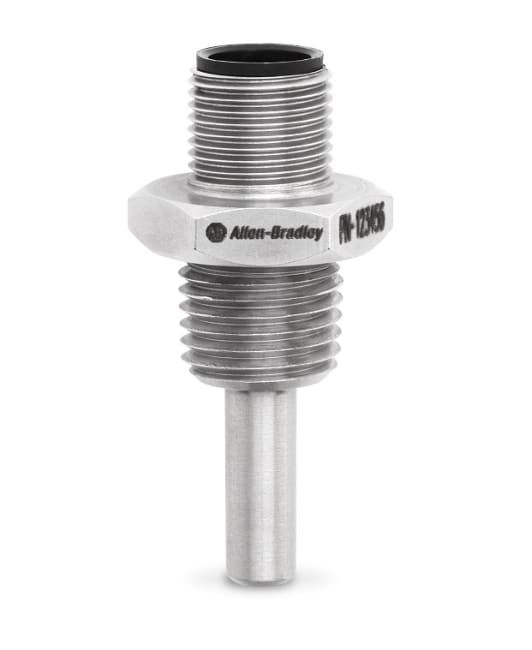

837RTD Resistance Thermometer PT1000
Produktnummer: 837RTD-N1G14A40P1-D4
Produktstatus:
inkl. mva.
837RTD , Resistance Thermometers , Standard , -30…130 C ( -22 …266 F) , G 1/4 BSPP Male, Probe Length 40 mm, Pt1000 Ohm , 4 pin DCMx12 Micro
Egenskaper for produkt/familie
- Provides an IP67 rated enclosure
| Spesifikasjoner | |
|---|---|
| Product Family | 837RTD Resistance Thermometer |
| Sensor Model Type | Standard |
| Temperature Sensor Type | Non-Display |
| Temperature Measuring Range | -22 ..+266 F / -30 .. +130 C (without neck tube) |
| Process Connection | G 1/4 BSPP Male |
| Temperature Probe Length | 40 mm |
| Output Type | Pt1000 [Ohm] |
| Connection Types | 4-Pin DC Micro(M12) Integral QD |
| Lengde | 17.0 |
| Høyde | 0.1 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 837rtd-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
