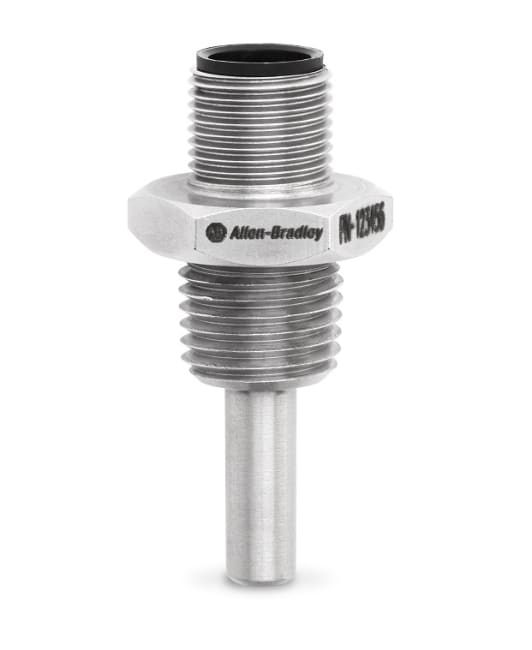

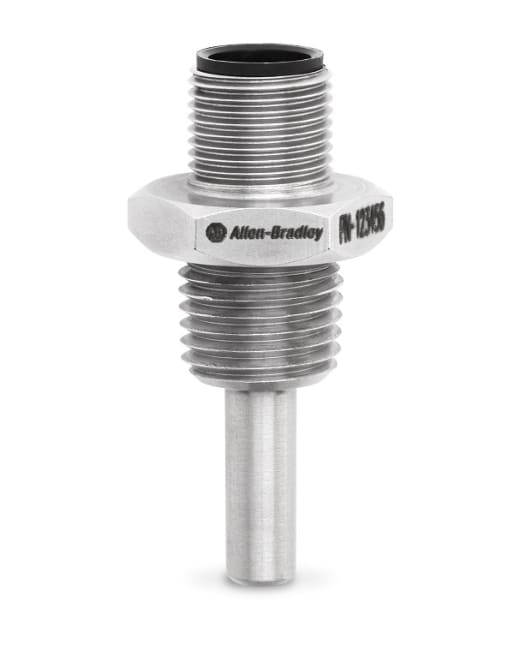

837RTD Resistance Thermometer PT100
Produktnummer: 837RTD-N1N14A40P2-D4
inkl. mva.
Resistance Thermometer Sensor, Standard, Non-Display, -22…+266 F (-30…+130 C), 1/4 NPT Male, 40 mm, Pt100, 4 Pin DC Micro (M12)
Egenskaper for produkt/familie
- Provides an IP67 rated enclosure
| Spesifikasjoner | |
|---|---|
| Temperature Sensor Type | Non-Display |
| Process Connection | 1/4 NPT - Male |
| Temperature Probe Length | 40 mm |
| Output Type | Pt100 [Ohm] |
| Sensor Model Type | Standard |
| Temperature Measuring Range | -22 ..+266 F / -30 .. +130 C (without neck tube) |
| Product Family | 837RTD Resistance Thermometer |
| Connection Types | 4-Pin DC Micro(M12) Integral QD |
| Lengde | 15.24 |
| Høyde | 1.905 |
