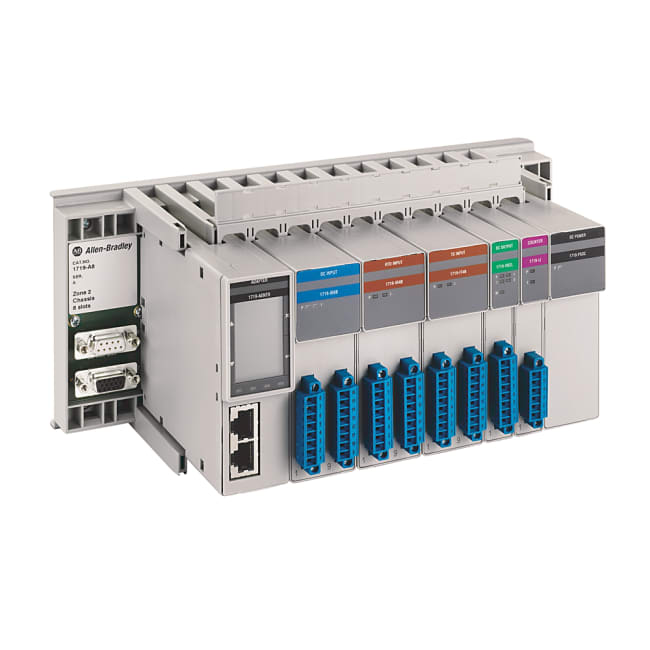

8 Slots, Base Chassis, IntrinsicallySafe

Produktnummer: 1719-A8
Produktstatus:


inkl. mva.

Ex I/O 8 Slot Base Chassis

Zone 2/Class I, Div 2 Mounting, 8 Slots, Base Chassis, IntrinsicallySafe, For use with Ex I/O

Egenskaper for produkt/familie

  • Offers compact, chassis-based I/O design where power supply is contained on the chassis
  • Provides intrinsically safe I/O to satisfy application requirements, certified for Zone 2 or Class I, Div 2 mounting
  • Connects on EtherNet/IP
  • Supports in RSLogix 5000® v24 and above with Add-on Profile
  • Integrates with the Integrated Architecture® system for easy configuration
  • Includes DLR adapter and optional power supply redundancy
  • Offers HART 7 support that is standard on all analog modules
Spesifikasjoner
Chassis Ex I/O 8 Slot Base Chassis
Opprinnelsesland DE
Tolltariffnummer 85371098
Lengde 46.99
Høyde 11.938
Livssyklus Active
