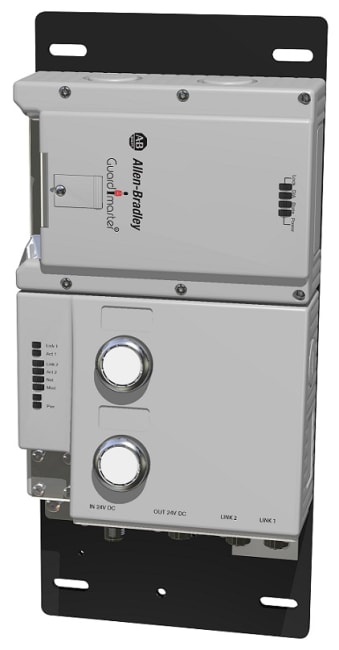

442G ACCESS BOX PTL ETHERNET/IP LEFT-HAND, 2 BUTTONS,
Produktnummer: 442G-MABLB-UL-P49
Produktstatus:
inkl. mva.
Lock Module, Ethernet, Power to Lock, Access Box, Unique Code, Left hand, 2 Push Buttons
Egenskaper for produkt/familie
- Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
- Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
- Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
| Spesifikasjoner | |
|---|---|
| Coding Type | High Level (Unique) Coded |
| Type | Lock Modules |
| Control Functions | Two Push Buttons |
| Handle Orientation | Left |
| Connection Type | EtherNet/IP (2 x M12, A-coded) |
| Lock Type | Power to Lock |
| Product Family | EtherNet/IP |
| Lock Modules | Lock Module, 442G Access Box, Power to Lock, Unique Code, EtherNet/IP (2 x M12, D-coded), Left-hand Guard, 2 Push Buttons |
| Lengde | 47.5 |
| Høyde | 13.5 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 442g-in004_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2-Dimensional Drawing (DXF) Filnavn: 442G-MABXB-UL-P49.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: 442G-MAB_B-UL-P49.jpg Filtype: image/png |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: 442g-mab&b-ul-p49 Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: 442G-MABXB-UL-P49.pdf Filtype: application/pdf |
Last ned |
