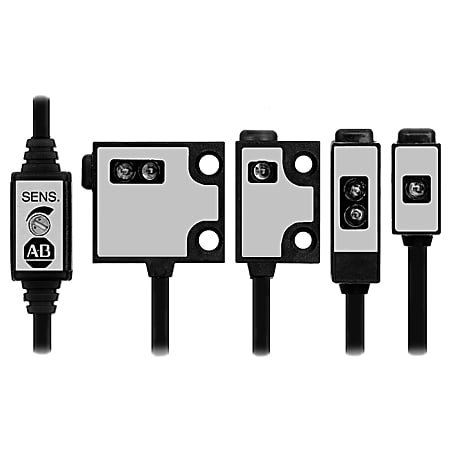

42KA Flat Pack Miniature Photoelectric Sensor
Produktnummer: 42KA-T2KNTK-A2
Produktstatus:
inkl. mva.
Ultra Mini Photo Sensor, Side Through Hole, Transmitted Beam Pair, Visible Red, 350.00 EA , Not Adjustable Sensitivity, NPN, DC - Dark Operate, 2 M (6.5 Ft) Cable
Egenskaper for produkt/familie
- Subminiature package style
- NPN or PNP output models
- Models with and without sensitivity adjustment
- Highly visible status Indicators
- 2 m cable connection
- Three sensing modes
| Spesifikasjoner | |
|---|---|
| Voltage Rating | DC - Dark Operate |
| Sensing Beam | Visible Red |
| Output | Sink (NPN) |
| Sensing Range | 500mm (19.7in) |
| Connection | 2m (6.5ft) cable |
| Output Type | Sink (NPN) |
| Sensing Mode | Transmitted Beam |
| Operating Voltage/Mode | DC - Dark Operate |
| Connection Type | 2m (6.5ft) cable |
| Light Source | Visible Red LED |
| View | Side |
| Sensitivity Adjustment | No |
| Maximum Sensing Distance | 500mm (19.7in) |
| Lengde | 8.999 |
| Høyde | 1.999 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
