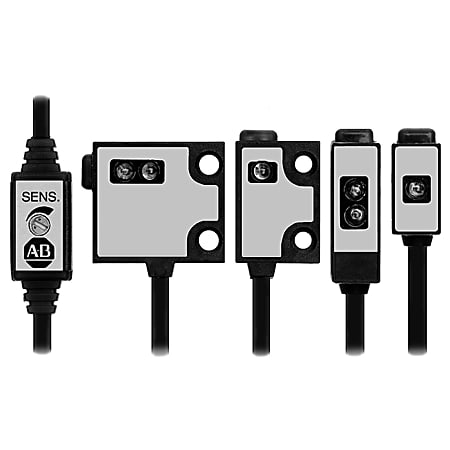

42KA Flat Pack Miniature Photoelectric Sensor
Produktnummer: 42KA-S2JPSA-A2
Produktstatus:
inkl. mva.
Ultra Mini Photo Sensor, Side Through Hole, Sharp Cut Off Diffuse, Visible Red, 23.00 EA , Manually Adjustable, PNP, DC - Light Operate, 2M (6.5 Ft) Cable
| Spesifikasjoner | |
|---|---|
| Sensing Mode | Sharp Cutoff Diffuse |
| Light Source | Visible Red LED |
| View | Side |
| Sensitivity Adjustment | Yes |
| Maximum Sensing Distance | 30mm (1.2in) |
| Operating Voltage/Mode | DC - Light Operate |
| Output Type | Source (PNP) |
| Connection Type | 2m (6.5ft) cable |
| Sensing Range | 30mm (1.2in) |
| Output | Source (PNP) |
| Voltage Rating | DC - Light Operate |
| Connection | 2m (6.5ft) cable |
| Sensing Beam | Visible Red |
| Lengde | 9.093 |
| Høyde | 2.108 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ka-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42ka_side_sens Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: PHEL42KA_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DWG/DXF) Filnavn: 42KA.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM420.dwg Filnavn: ABGCM420.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM420.dxf Filnavn: ABGCM420.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM420.pdf Filnavn: ABGCM420.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM420.wmf Filnavn: ABGCM420 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM421.dwg Filnavn: ABGCM421.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM421.dxf Filnavn: ABGCM421.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM421.pdf Filnavn: ABGCM421.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM421.wmf Filnavn: ABGCM421 Filtype: application/x-msmetafile |
Last ned |
