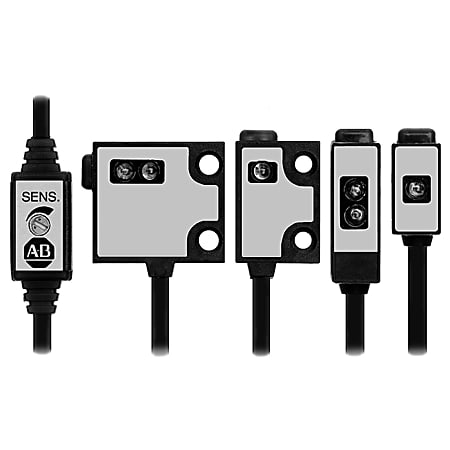

42KA Flat Pack Miniature Photoelectric Sensor
Produktnummer: 42KA-T2KPTK-A2
Produktstatus:
inkl. mva.
Ultra Mini Photo Sensor, Side Through Hole, Transmitted Beam Pair, Visible Red, 350.00 EA , Not Adjustable Sensitivity, PNP, DC - Dark Operate, 2 M (6.5 Ft) Cable
Egenskaper for produkt/familie
- Subminiature package style
- 2 m cable connection
- NPN or PNP output models
- Models with and without sensitivity adjustment
- Highly visible status Indicators
- Three sensing modes
| Spesifikasjoner | |
|---|---|
| Connection | 2m (6.5ft) cable |
| Output | Source (PNP) |
| Voltage Rating | DC - Dark Operate |
| Sensing Range | 500mm (19.7in) |
| Sensing Beam | Visible Red |
| Sensitivity Adjustment | No |
| Maximum Sensing Distance | 500mm (19.7in) |
| Operating Voltage/Mode | DC - Dark Operate |
| Light Source | Visible Red LED |
| Output Type | Source (PNP) |
| View | Side |
| Connection Type | 2m (6.5ft) cable |
| Sensing Mode | Transmitted Beam |
| Lengde | 8.89 |
| Høyde | 8.89 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ka-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42ka_tb_side Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DWG/DXF) Filnavn: 42KA.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42KA_PH.jpg Filtype: image/png |
Last ned | |
|
ABGCM460.dwg Filnavn: ABGCM460.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM460.dxf Filnavn: ABGCM460.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM460.pdf Filnavn: ABGCM460.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM460.wmf Filnavn: ABGCM460 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM461.dwg Filnavn: ABGCM461.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM461.dxf Filnavn: ABGCM461.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM461.pdf Filnavn: ABGCM461.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM461.wmf Filnavn: ABGCM461 Filtype: application/x-msmetafile |
Last ned |
