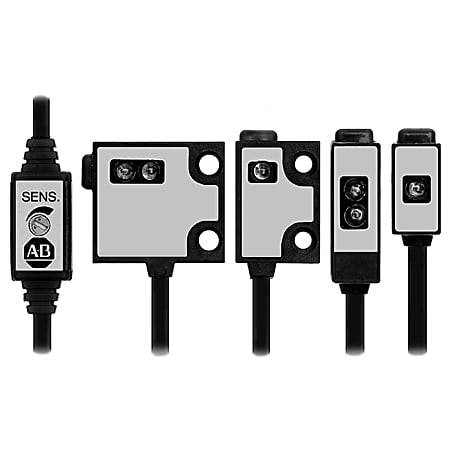

42KA Flat Pack Miniature Photoelectric Sensor
Produktnummer: 42KA-D2JNFC-A2
Produktstatus:
inkl. mva.
Ultra Mini Photo Sensor, Front Through Hole, Standard Diffuse, Visible Red, 38.00 EA , Manually Adjustable, NPN, DC - Light Operate, 2 M (6.5 Ft) Cable
Egenskaper for produkt/familie
- Subminiature package style
- NPN or PNP output models
- 2 m cable connection
- Models with and without sensitivity adjustment
- Highly visible status Indicators
- Three sensing modes
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red |
| Output | Sink (NPN) |
| Sensing Range | 50mm (2in) |
| Voltage Rating | DC - Light Operate |
| Connection | 2m (6.5ft) cable |
| Operating Voltage/Mode | DC - Light Operate |
| Maximum Sensing Distance | 50mm (2in) |
| Light Source | Visible Red LED |
| Sensing Mode | Standard Diffuse |
| Output Type | Sink (NPN) |
| Connection Type | 2m (6.5ft) cable |
| Sensitivity Adjustment | Yes |
| Lengde | 9.5 |
| Høyde | 1.999 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ka-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42KA_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DWG/DXF) Filnavn: 42KA.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42ka_face_view Filtype: application/x-zip-compressed |
Last ned | |
|
ABGCM410.dwg Filnavn: ABGCM410.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM410.dxf Filnavn: ABGCM410.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM410.pdf Filnavn: ABGCM410.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM410.wmf Filnavn: ABGCM410 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM411.dwg Filnavn: ABGCM411.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM411.dxf Filnavn: ABGCM411.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM411.pdf Filnavn: ABGCM411.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM411.wmf Filnavn: ABGCM411 Filtype: application/x-msmetafile |
Last ned |
