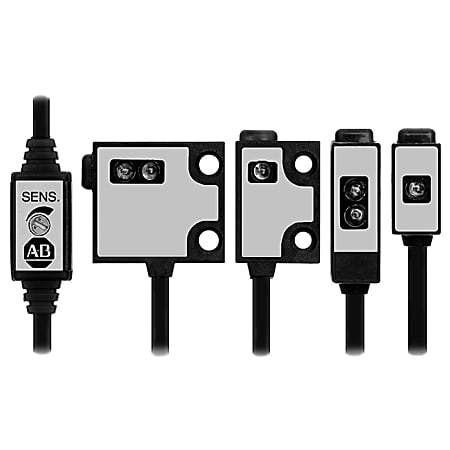

42KA Flat Pack Miniature Photoelectric Sensor
Produktnummer: 42KA-D2JNFA-A2
Produktstatus:
inkl. mva.
Photoelectric Sensor, Small Rectangular Style, Diffuse, 30 mm Sensing Range, Visible Red LED, Light Operate Output, NPN Output, 2 mCable, Adjustable Sensitivity
| Spesifikasjoner | |
|---|---|
| Light Source | Visible Red LED |
| Operating Voltage/Mode | DC - Light Operate |
| Sensitivity Adjustment | Yes |
| Maximum Sensing Distance | 30mm (1.2in) |
| Connection Type | 2m (6.5ft) cable |
| Sensing Mode | Standard Diffuse |
| Output Type | Sink (NPN) |
| Lengde | 2.489 |
| Høyde | 8.788 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ka-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42KA_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DWG/DXF) Filnavn: 42KA.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42ka_face_view Filtype: application/x-zip-compressed |
Last ned | |
|
ABGCM410.dwg Filnavn: ABGCM410.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM410.dxf Filnavn: ABGCM410.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM410.pdf Filnavn: ABGCM410.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM410.wmf Filnavn: ABGCM410 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM411.dwg Filnavn: ABGCM411.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM411.dxf Filnavn: ABGCM411.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM411.pdf Filnavn: ABGCM411.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM411.wmf Filnavn: ABGCM411 Filtype: application/x-msmetafile |
Last ned |
