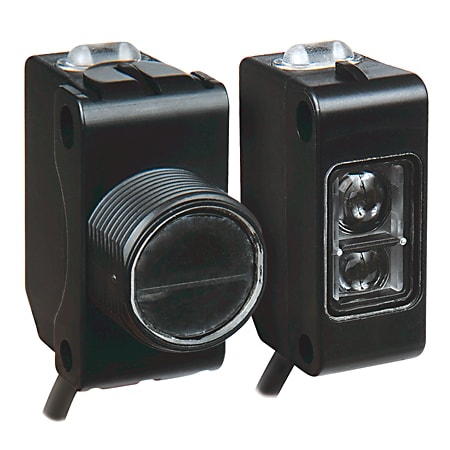

42JS Photoelectric Sensor
Produktnummer: 42JS-B2MNB2-Y4
Produktstatus:
inkl. mva.
Photoelectric Sensor, Fixed Background Suppression, 100-100 mm Sensing Range, Light Operate - Dark Operate Output, NPN Output, PicoQuick Disconnect Connector
Egenskaper for produkt/familie
- 80;889P-F4AB-5
| Spesifikasjoner | |
|---|---|
| Connection Media | DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Light Source | Visible Red |
| Output Type | Sink (NPN) |
| Sensitivity Adjustment | Standard w/out Adjustment |
| Sensing Mode | Background Suppression |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Connection Type | 4-pin Pico QD on 152mm (6in) pigtail |
| Sensing Range | 130 mm - Fixed Range |
| Lengde | 21.59 |
| Høyde | 1.905 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42js-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DXF) Filnavn: 42JS%20VisiSight.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Dimension Drawing (3D STEP format) Filnavn: 42js_no_adj Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: VisiSight_Photo.jpg Filtype: image/png |
Last ned |
