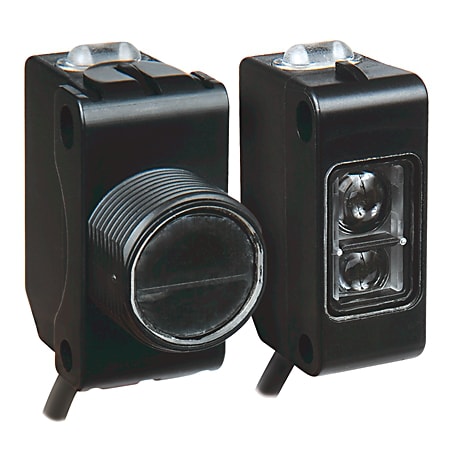

42JS Photoelectric Sensor
Produktnummer: 42JS-B2MNB2-F4
Produktstatus:
inkl. mva.
Photoelectric Sensor, Fixed Background Suppression, 100-100 mm Sensing Range, Light Operate - Dark Operate Output, NPN Output, MicroQuick Disconnect Connector
Egenskaper for produkt/familie
- IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
- Class 1 "Eye Safe" red laser beam
- Teach push button for sensitivity and LO/DO selection
- IP67 rated enclosure
- Clear object detection
- Linear sensitivity adjustment knob or no adjustment models
- Visible red LED light source for ease of alignment
- IP69K and ECOLAB rated enclosure
- Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
- Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
- Color and contrast detection
- 80;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red |
| Light Source | Visible Red |
| Sensing Mode | Background Suppression |
| Sensitivity Adjustment | Standard w/out Adjustment |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Sensing Range | 130 mm - Fixed Range |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Output Type | Sink (NPN) |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 13.589 |
| Høyde | 14.808 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42js-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: VisiSight_Photo.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: 42JS%20VisiSight.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Dimension Drawing (3D STEP format) Filnavn: 42js_no_adj Filtype: application/x-zip-compressed |
Last ned |
