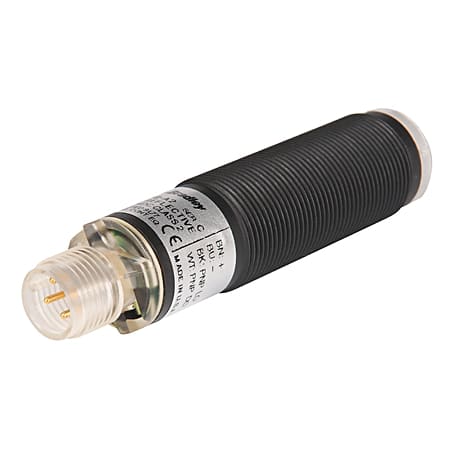

18 mm Cylindrical Sensor

Produktnummer: 42CA-B2LPBE-D4
Produktstatus:


inkl. mva.

18 mm Cylindrical Sensor, 18 mm Cylindrical, Background Suppression, Visible Red, Not Adjustable Sensitivity, PNP, DC LO or DO Selectable, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 0.50 ms, 100 mm Operating Distance, 100 mm Sensing Distance, 4-pin DC Micro

Egenskaper for produkt/familie

  • 80;889D-F4AC-5
  • Two status indicators for power, output, unstable operation and short-circuit protection
  • 1 ms response time on most models
  • Extended range high-speed models with a 0.5 ms response time
  • Selectable light or dark operate on background suppression models
  • Complementary light and dark operate outputs
  • Input to disable light source on transmitted beam emitter for testing and scanning purposes
  • Visible red status indicator on polarized retroreflective models
  • Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
  • 10...30V DC operation
  • Flat lens reduces dust collection
  • NPN or PNP outputs
Spesifikasjoner
Connections Media DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m
Sensitivity Adjust Without Adjustment
Sensing Mode Background Suppression
Output Type Source (PNP)
Maximum Sensing Distance 100mm (3.9in)
Connection Type 4-pin DC Micro QD
Operating Voltage/Mode DC - LO or DO selectable
Light Source Visible Red LED
Sensing Beam Visible Red LED
Sensing Range 100mm (3.9in)
Connection 4-pin DC Micro QD
Voltage Rating DC - LO or DO selectable
Output Source (PNP)
Lengde 11.506
Høyde 3.912
Livssyklus Active
