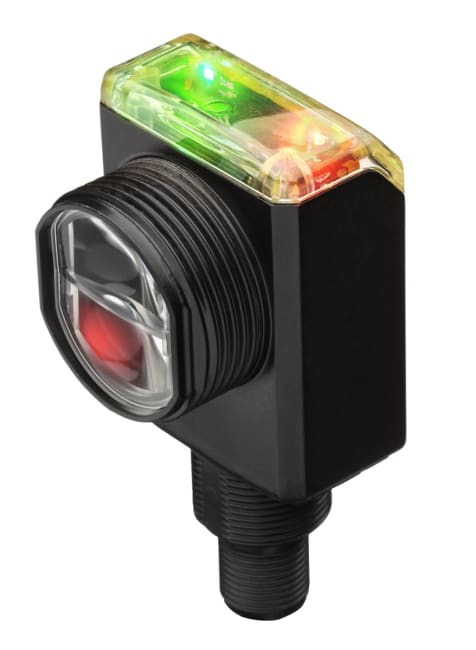

42AF RightSight, Background Suppression, IO-Link
Produktnummer: 42AF-B1MAC1-F4
Produktstatus:
inkl. mva.
Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 1200 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail
Egenskaper for produkt/familie
- 110;889D-F4AC-5
- Uses embedded IO-Link communications
- Offers 10...30V DC only and Universal 20...240V AC/DC models
- Includes an IP67 and IP69k rated enclosure
- Firmware upgrade and embedded IODD ready
- Able to withstand a wide range of temperatures -40…+70 °C (-40…158 °F)
- Provides transmitted beam (80 m), polarized retroreflective (10 m), background suppression, and background reflection sensing modes
- Provides robust right angle housing with 30 mm threaded nose and universal 18 mm threaded base
- Provides dual auto PNP/NPN and SPDT EM relay output
- Includes 360 degree highly visible status indicator LEDs
| Spesifikasjoner | |
|---|---|
| Output Type | Auto PNP or NPN (IO-Link) |
| Sensing Range | 1.2 m |
| Operating Voltage | 10 - 30V DC |
| Sensing Mode | Background Suppression |
| IO-Link Enabled | Yes |
| Response Time | 8 ms |
| Output Mode | DC-Light and Dark Operate |
| Light Source | Infrared |
| Sensitivity Adjustment | Push Button Teach Only |
| Connection Types | 4 pin DC Micro (M12) on 150 mm (6 in.) pigtail |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 2.1 |
| Høyde | 41.5 |
| Livssyklus | Active |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 30mm_assembly_bgs Filtype: application/x-zip-compressed |
Last ned | |
|
2D drawing (DWG/DXF) Filnavn: 42AF.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: Apollo_3QtrLeft_Lights_15910.jpg Filtype: image/png |
Last ned | |
|
2D drawing PDF Filnavn: 42AF.pdf Filtype: application/pdf |
Last ned |
