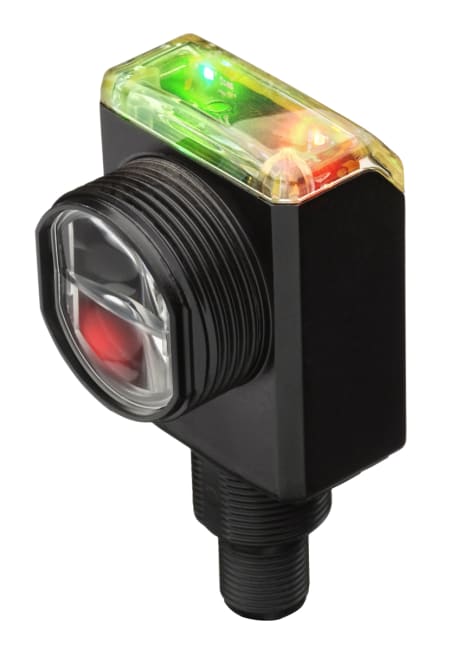

42AF RightSight, Background Reflection, IO-Link
Produktnummer: 42AF-N1MAC1-F4
Produktstatus:
inkl. mva.
Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail
Egenskaper for produkt/familie
- 110;889D-F4AC-5
- Uses embedded IO-Link communications
- Provides robust right angle housing with 30 mm threaded nose and universal 18 mm threaded base
- Able to withstand a wide range of temperatures -40…+70 °C (-40…158 °F)
- Includes 360 degree highly visible status indicator LEDs
- Provides dual auto PNP/NPN and SPDT EM relay output
- Offers 10...30V DC only and Universal 20...240V AC/DC models
- Provides transmitted beam (80 m), polarized retroreflective (10 m), background suppression, and background reflection sensing modes
- Includes an IP67 and IP69k rated enclosure
- Firmware upgrade and embedded IODD ready
| Spesifikasjoner | |
|---|---|
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Output Mode | DC-Light and Dark Operate |
| Output Type | Auto PNP or NPN (IO-Link) |
| Sensing Mode | Background Reflection |
| Operating Voltage | 10 - 30V DC |
| Connection Types | 4 pin DC Micro (M12) on 150 mm (6 in.) pigtail |
| Sensitivity Adjustment | Push Button Teach Only |
| IO-Link Enabled | Yes |
| Response Time | 8 ms |
| Light Source | Infrared |
| Sensing Range | 800 mm |
| Lengde | 27.94 |
| Høyde | 3.81 |
| Livssyklus | Active |
