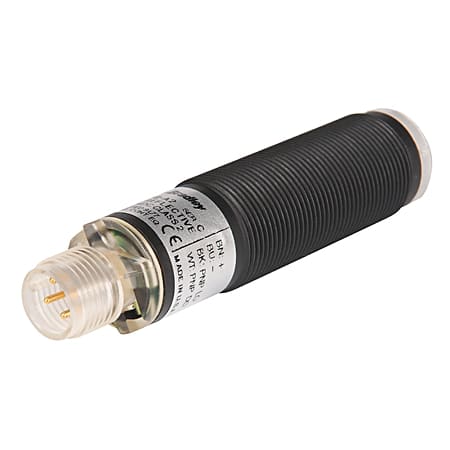

Photoelectric Sensor, Polarized Retroreflective, 3.8-3.8 m Sensing Range, Light Operate - Dark Operate Complementary Output, NPNOutput, Micro Connector, 42CA
Egenskaper for produkt/familie
- 80;889D-F4AC-5
- Input to disable light source on transmitted beam emitter for testing and scanning purposes
- Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
- Flat lens reduces dust collection
- Visible red status indicator on polarized retroreflective models
- NPN or PNP outputs
- Complementary light and dark operate outputs
- 10...30V DC operation
- 1 ms response time on most models
- Selectable light or dark operate on background suppression models
- Two status indicators for power, output, unstable operation and short-circuit protection
- Extended range high-speed models with a 0.5 ms response time
| Spesifikasjoner | |
|---|---|
| Connection | 4-pin DC Micro QD |
| Sensing Beam | Visible Red LED |
| Output | Sink (NPN) |
| Voltage Rating | DC - 2 Complementary LO/DO Outputs |
| Sensing Range | 3.8m (12.5ft) |
| Maximum Sensing Distance | 3.8m (12.5ft) |
| Connection Type | 4-pin DC Micro QD |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Sensitivity Adjust | Without Adjustment |
| Light Source | Visible Red LED |
| Sensing Mode | Polarized Retroreflective |
| Output Type | Sink (NPN) |
| Connections Media | DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Lengde | 28.448 |
| Høyde | 5.08 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ca-in002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42CA_QD_PH.jpg Filtype: image/png |
Last ned | |
|
2D AutoCad Drawing (DXF/DWG) Filnavn: 42CA_dimension.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42CA_qd Filtype: application/x-zip-compressed |
Last ned |
