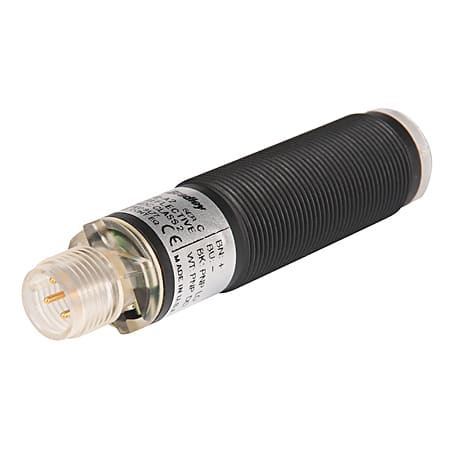

18 mm Cylindrical Sensor
Produktnummer: 42CA-D1MPAL-D4
Produktstatus:
inkl. mva.
18 mm Cylindrical Sensor, 18 mm Cylindrical, Standard Diffuse, Infrared, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Plastic, 1 m range, 18mm Mount, 1.00 ms, 3 mm Minimum Sensing Distance, IP67
Egenskaper for produkt/familie
- Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
- Input to disable light source on transmitted beam emitter for testing and scanning purposes
- Extended range high-speed models with a 0.5 ms response time
- Complementary light and dark operate outputs
- 1 ms response time on most models
- Two status indicators for power, output, unstable operation and short-circuit protection
- NPN or PNP outputs
- Flat lens reduces dust collection
- Visible red status indicator on polarized retroreflective models
- Selectable light or dark operate on background suppression models
- 10...30V DC operation
- 80;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Range | 1m (3.3ft) |
| Sensing Beam | Infrared LED |
| Voltage Rating | DC - 2 Complementary LO/DO Outputs |
| Output | Source (PNP) |
| Connection | 4-pin DC Micro QD |
| Sensing Mode | Standard Diffuse |
| Maximum Sensing Distance | 1m (3.3ft) |
| Light Source | Infrared LED |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Sensitivity Adjust | With Adjustment |
| Output Type | Source (PNP) |
| Connection Type | 4-pin DC Micro QD |
| Connections Media | DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Lengde | 11.608 |
| Høyde | 3.505 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ca-in002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2D AutoCad Drawing (DXF/DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned |
