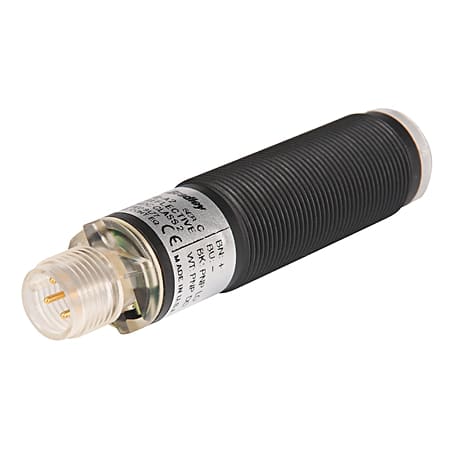

18 mm Cylindrical Sensor

Produktnummer: 42CA-D1MPAE-D4
Produktstatus:


inkl. mva.

18 mm Cylindrical Sensor, 18 mm Cylindrical, Standard Diffuse, Infrared, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Plastic, 100 mm range, 18mm Mount, 1.00 ms, 3 mm Minimum Sensing Distance, IP67

Egenskaper for produkt/familie

  • Input to disable light source on transmitted beam emitter for testing and scanning purposes
  • Two status indicators for power, output, unstable operation and short-circuit protection
  • Selectable light or dark operate on background suppression models
  • NPN or PNP outputs
  • 10...30V DC operation
  • 1 ms response time on most models
  • Visible red status indicator on polarized retroreflective models
  • Extended range high-speed models with a 0.5 ms response time
  • Flat lens reduces dust collection
  • Complementary light and dark operate outputs
  • Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
  • 80;889D-F4AC-5
Spesifikasjoner
Connections Media DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m
Voltage Rating DC - 2 Complementary LO/DO Outputs
Output Source (PNP)
Sensing Beam Infrared LED
Connection 4-pin DC Micro QD
Sensing Range 100mm (3.9in)
Sensitivity Adjust With Adjustment
Maximum Sensing Distance 100mm (3.9in)
Light Source Infrared LED
Sensing Mode Standard Diffuse
Output Type Source (PNP)
Operating Voltage/Mode DC - 2 Complementary LO/DO Outputs
Connection Type 4-pin DC Micro QD
Lengde 11.811
Høyde 4.572
Livssyklus Active
