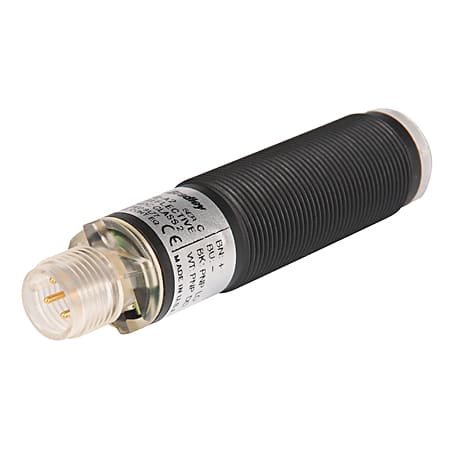

18 mm Cylindrical Sensor

Produktnummer: 42CA-D1MNAL-D4
Produktstatus:


inkl. mva.

18 mm Cylindrical Sensor, 18 mm Cylindrical, Standard Diffuse, Infrared, Manually Adjustable, NPN, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Plastic, 1 m range, 18mm Mount, 1.00 ms, 3 mm Minimum Sensing Distance, IP67

Egenskaper for produkt/familie

  • 80;889D-F4AC-5
  • NPN or PNP outputs
  • Complementary light and dark operate outputs
  • Selectable light or dark operate on background suppression models
  • Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
  • Extended range high-speed models with a 0.5 ms response time
  • 1 ms response time on most models
  • Input to disable light source on transmitted beam emitter for testing and scanning purposes
  • Visible red status indicator on polarized retroreflective models
  • Two status indicators for power, output, unstable operation and short-circuit protection
  • 10...30V DC operation
  • Flat lens reduces dust collection
Spesifikasjoner
Maximum Sensing Distance 1m (3.3ft)
Sensitivity Adjust With Adjustment
Output Type Sink (NPN)
Operating Voltage/Mode DC - 2 Complementary LO/DO Outputs
Light Source Infrared LED
Connection Type 4-pin DC Micro QD
Sensing Mode Standard Diffuse
Sensing Beam Infrared LED
Voltage Rating DC - 2 Complementary LO/DO Outputs
Output Sink (NPN)
Connection 4-pin DC Micro QD
Sensing Range 1m (3.3ft)
Connections Media DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m
Lengde 18.999
Høyde 2.489
Livssyklus Active
