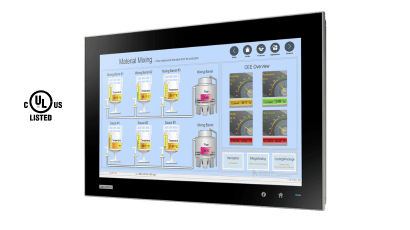

18.5In C1D2 PCT Panel PC w/Core i5 CPU,8G,240G
Produktnummer: TPC-318WH-P853A
Lagerbeholdning:
inkl. mva.
18.5" WXGA Panel PC, C1D2 certification, Intel® Core™ i5 8365UE 1.6GHz Quad-core processor, 8G DDR4 RAM, 240G SSD
18.5" WXGA Panel PC, UL C1D2 certification, Intel® Core™ i5 8365UE 1.6GHz Quad-core processor, 8G DDR4 RAM, 240G SSD
TPC-318WH touch panel computer is a UL C1D2 certification model equipped with 18.5" WXGA TFT LED LCD, low-power 8th Gen. Intel® Core™ i5-8365UE quad-core processor, and
built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system.
To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-318WH features IP66-rated front panel protecting against dust and water ingress, and extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or WiFi application.
TPC-318WH is UL C1D2 certified for the application in hazardous environments.
Features
- UL C1D2 certified for hazardous environments
- Industrial-grade 18.5" WXGA TFT LCD with 50K lifetime and LED backlight
- 8th Gen. Intel® Core™ i5-8365UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with PCAP touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Support TPM2.0 hardware security
Embedded OS
- 20701WLH1S0005 - Img W11LTSC v7.01 B010 TPC-3xx(W)(H)-x8xxx H
- 20701WLV1S0005 - Img W11LTSC v7.01 B010 TPC-3xx(W)(H)-x8xxx V
