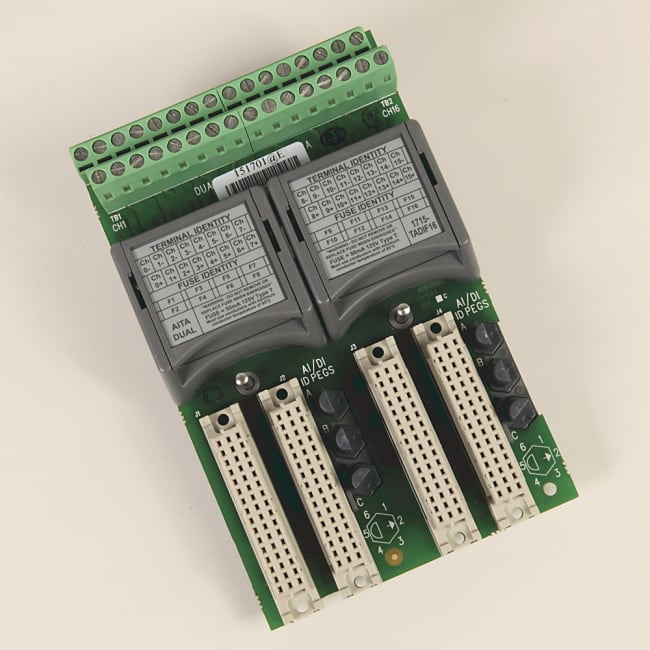

1715 16 Duplex A/I Termination Assembly
SKU: 1715-TADIF16
Product status:
incl. VAT
Termination Assembly - analog input duplex
Termination Assembly, Redundant I/O, 16 Point, Duplex, Analog Input, DIN Rail Mounted, IP20, Operating Temperature -25...70 ╝C (-13...158╝F)
Properties for product/family
- Require no additional hardware or programming software
- Offer flexible, modular construction for user-configurable I/O applications
- Support short circuit and open circuit line fault detection
- Allow module removal and replacement online with no interruption of the signal inputs
- Suitable for simplex and duplex connections and for fault tolerant applications
- Offer 4…20 mA output
- Provide voltage and current monitoring on each channel with reverse current protection
- Offer 24V DC input
- Support as many as eight field devices
- Provide secure communication between modules for fault tolerant operation
- 16-channel connection capability
- Provide input voltage data for line monitoring and field fault detection
- Built-in diagnostic testing
- Offer 24V DC output
- Allow dual redundant field power feed capabilities without requiring external diodes
- Include two-terminal current regulating device
- Provide I/O redundancy for system requiring high availability
- Offer 4…20 mA input
- Eight isolated output channels per module
- Provide duplex series output switches with overload protection for each channel
- Offer fail-safe design and operation
| Specifications | |
|---|---|
| Type | Termination Assembly |
| Special Features | Standard |
| Application | Chassis Based |
| Mounting | DIN rail |
| Operating Temperature | -25...70 °C (-13...158 °F) |
| Enclosure | IP20 |
| Termination Assemblies | Termination Assembly - analog input duplex |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85371098 |
| Lengde | 31.496 |
| Høyde | 5.994 |
| Livssyklus | Active |
