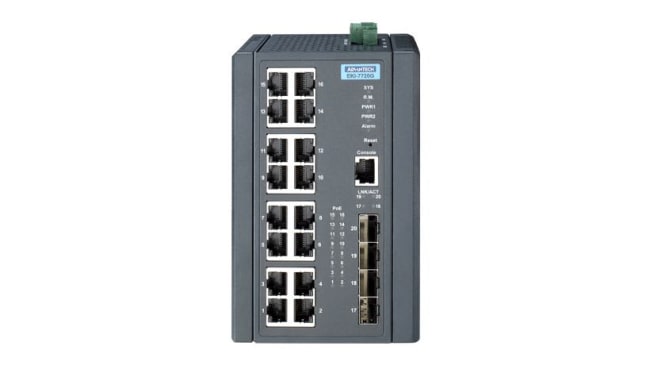

16GE+4G SFP Gigabit Managed Ethernet PoE Switch, Wide Temp
16GE+4G SFP Ports Managed Redundant Industrial PoE Switch, -40~70°C, IEC 62443-4-2 SL2 Certified
16GE+4G SFP Ports Managed Redundant Industrial PoE Switch, -40~70°C, IEC 62443-4-2 SL2 certified
The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation.
In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
Features
- Cyber Security: IEC 62443-4-2 SL2 certified
- 16 IEEE 802.3af/at PoE ports, 48 ~ 57VDC for 802.3af, 53 ~ 57VDC for 802.3at
- PoE Budget 420 Watt
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro, with ultra high-speed recovery time less than 20ms, ERPS(G.8032), IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP
- IXM function enables fast deployment
- Railway Trackside: EN 50121-4
- EN IEC 61000-6-4, EN IEC 61000-6-2
- Security: 802.1X, Port-based/MAC-based Authentication (MD5/PEAP/TLS/TTLS Encryption), RADIUS, TACAS+, ACL, IP Source Guard, ARP Spoofing Prevention
- Management: SNMP v1/v2c/v3, WEB, SSH2.0, SSL, Telnet, standard MIB, private MIB
- -40 ~ 70°C wide-range operating temperature
- 48 ~ 57VDC, Redundant dual power input and 1 x relay output
- 5-year warranty
| Spesifikasjoner | |
|---|---|
| Cyber Security | IEC 62443-4-2 |
| Ethernet Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad |
| Safety | UL 62368-1 |
| Layer 2 Redundancy | X-Ring Pro, with ultra high-speed recovery time less than 20ms, ERPS(G.8032), IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP |
| Power over ethernet | 16 IEEE 802.3af/at PoE ports |
| PoE Budget | 240 Watt |
| EMI | CE, CISPR 32, FCC Part 15B Class A |
| EMC | EN 61000-6-4, EN 61000-6-2, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Railway Trackside | EN 50121-4 |
| Switch Security | 802.1X, Port-based/MAC-based Authentication (MD5/PEAP/TLS/TTLS Encryption), RADIUS, TACAS+, ACL, IP Source Guard, ARP Spoofing Prevention |
| Management | SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB |
| Industrial Protocol | Modbus/TCP |
| Operating Temperature | -40 ~ 70°C |
| Operating Relative Humidity | 5 ~ 95% (non-condensing) |
| Power Input | 48 ~ 57VDC, Redundant dual power input |
| Relay output | 1 |
| MTBF | 1 343 056 hours |
| Warranty | 5 years |
| Produkt oversikt | |
|---|---|
| Switch type | L2 administrerbar switch |
| Formfaktor | DIN |
| Antall porter | 20 |
| PoE | PoE |
| Sertifisering | IEC 62443-4-2 |
