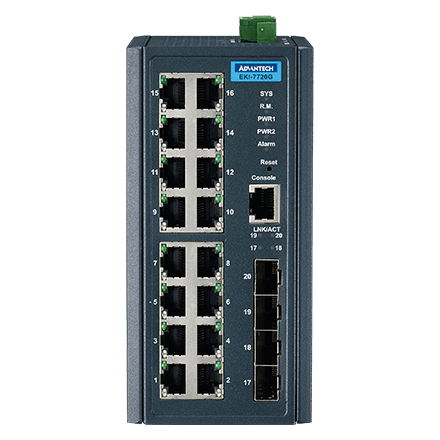

16GE+4G SFP Gigabit Managed Ethernet Switch, Wide Temp

Produktnummer: EKI-7720G-4FI-BE

Lagerbeholdning:

Ant. i pakke: 1

inkl. mva.

16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch -40~75℃ - IEC 62443-4-2 SL2 Certified

16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch, -40~75℃, IEC 62443-4-2 SL2 certified

Cyber Security: IEC 62443-4-2 SL2 certified
16 Gigabit Ethernet ports + 4 SFP ports
SFP socket for Easy and Flexible Fiber Expansion
Redundancy: X-Ring Pro, with ultra high-speed recovery time less than 20ms, ERPS(G.8032), IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP
IXM function enables fast deployment
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS, TACAS+, ACL, IP Source Guard, ARP Spoofing Prevention
NEMA TS2 for Traffic Control
Railway Trackside: EN 50121-4
EN 61000-6-2, EN 61000-6-4
-40 ~ 75°C wide-range operating temperature (EKI-7720E-4FI)
12 ~ 48 VDC, redundant dual power input and 1 relay output
5-Year Warranty

Spesifikasjoner
Cyber Security	IEC 62443-4-2
Ethernet Standard	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3ab 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control
Safety	UL 61010-2-201, EN LVD 62368
Layer 2 Redundancy	X-Ring Pro, with ultra high-speed recovery time less than 20ms, ERPS(G.8032), IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP
EMI	CE, CISPR 32, FCC Part 15B Class A
EMC	EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Railway Trackside	EN 50121-4
Switch Security	802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS, TACAS+, ACL, IP Source Guard, ARP Spoofing Prevention
Management	SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB-II, Private MIB, Ethernet-Like MIB, RMON MIB (Group 1, 2, 3, 9), SSH2.0, SSL
Industrial Protocol	Modbus/TCP
Operating Temperature	-40 ~ 75°C
Operating Relative Humidity	5 ~ 95% (non-condensing)
Power Input	12 ~ 48 VDC, redundant dual power input
Relay output	1
MTBF	1 469 341 hours
Warranty	5 years
