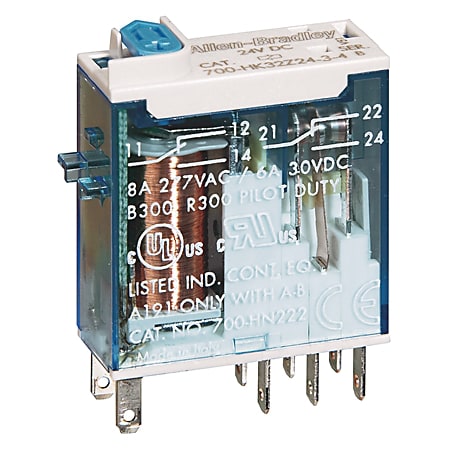

12V DC GP Slim Line Relay
Produktnummer: 700-HK32Z12-3-4
Produktstatus:
inkl. mva.
GP Slim Line Relay, 12V DC, Standard Contacts, 2 Changeover Contact(DPDT)8A, Psh-to-Test & Mnl Ovrrd Funct.
Egenskaper for produkt/familie
- Includes color code to identify control voltage type
- Offers snap-in marker system
- Includes separation of coil and contact terminals
- Includes slim build which saves panel space
| Spesifikasjoner | |
|---|---|
| Contact Rating | 8 Amp Contact (Slim Line Relay) |
| Contact Configuration | DPDT Contact Arrangement |
| Coil Voltage | 12V DC |
| Relay Option | Push-To-Test & Manual Override function and Pilot Light |
| Lengde | 5.08 |
| Høyde | 1.778 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 700-td552_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2D drawing PDF Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
2D drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Family Photo Filnavn: en-US Filtype: image/png |
Last ned |
