16FE+2GE combo port Unmanaged Switch with VLAN, QoS and BSP,  12~48 VDC, -40 to 75°C

The EKI-2718E-2CI-A industrial Ethernet switch provides 16 x 10/100M Ethernet ports + 2 x Combo 10/100/1000M ports, offering connectivity for diverse applications.

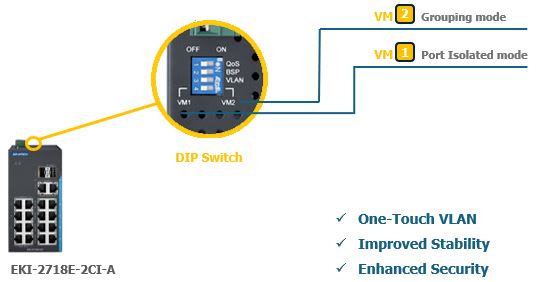

Users can conveniently enable or disable Quality of Service (QoS), broadcast storm protection, and port-based VLAN settings using DIP switches.

Equipped with 12~48 VDC redundant power inputs and pull-down DIN-rail mounting, these switches are designed for reliable performance in industrial environments.
With EMC Level 4 protection, it resists electromagnetic interference, ensuring stable operation even in harsh conditions.

The operating temperature range of -40 to 75°C further enhances its durability.

More information is available here: VLAN segmentation with unmanaged switch

EKI-2718E-2CI

• Provides 18 Fast Ethernet ports with Auto MDI/MDI-X and 2 x Combo 10/100/1000M ports
• Supports 16x 10/100 Mbps Auto-Negotiation + 2x Combo 10/100/1000 Mbps Auto-Negotiation
• Supports redundant 12 ~ 48 VDC power input
• EN 61000-6-4, EN 61000-6-2
• Supports DIP Switch Configuration: QoS/BSP/VLAN
• Supports EMC Level 4 protection for extreme outdoor environments
• Supports wide operating temperatures from -40 to 75 °C
• Dual power input with 12 ~48 VDC (8.4~52.8 VDC)
• 5-Year Warranty

Specifications

Certification

EMI:
CE, FCC Class A, BSMI

EMS:
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)

EN 61000-6-4, EN 61000-6-2

Safety:
UL 62368

Environment

Operating Temperature:
-40 ~ 75°C

Storage Temperature:
-40 ~ 85°C

Ethernet Communication

Fiber port number:
2 (Combo)

Fiber port Interface:
SFP

Fiber port Connector Type:
SFP cage

Fiber Transmission Distance:
Up to 110 km

Fiber Transmission Speed:
10/100/1000 Mbps

RJ-45 Port Number:
16 + 2 (combo)

RJ-45 Port Connector Type:
RJ-45

RJ-45 Transmission Distance:
100 m

RJ-45 Transmission Speed:
10/100 Mbps

Mechanism

Mounting (DIN-rail):
Yes

Mounting (Wall):
Yes

Dimensions (W x H x D):
72 x 140 x 105 mm

Enclosure (Plastic):
-

IP Rating:
IP30

Weight:
0.90 kg

Power

Power Connector Type:
4-pin removable terminal (power)

Power Consumption:
Max. 5.8W

Power Input (DC):
12 ~ 48 VDC, redundant dual inputs

Power Operating Current:
0.7A @ 12V

Redundant Dual Inputs:
Yes

Switch Properties

Jumbo Frame:
16K bytes

MAC Table Size:
16K
Packet Buffer Size
4M bit

Switch Fabric Speed:
7.2Gbps

Protection

Overload Current:
Present

Reverse Polarity:
Present

MTBF

341,000 hours

Warranty

Warranty Period:
5 years
