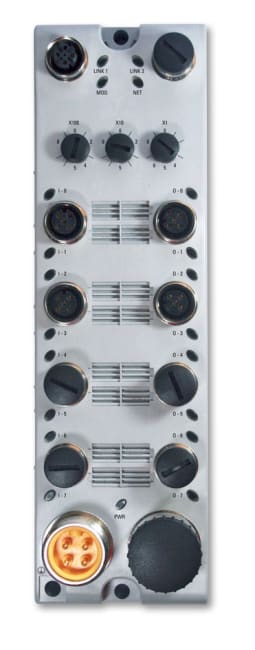

ArmorBlock 16 Point Configurable

Produktnummer: 1732E-16CFGM12QCR
Produktstatus:


inkl. mva.

1732 ArmorBlock EtherNet/IP, EtherNet/IP, Self-Configuring, 16 Self-Configuring, Dual-Port, Quick Connect, DC Micro (M12), Without CIP SYNC Input, Without Diagnostics, Dual Port

I/O Block, ArmorBlock, Discrete, DC, Self Configurable, 16 Point, M12Input/Output Connectors, M12 Network Connector, EtherNet, Device LevelRing, Quick Connect, IP69K

Egenskaper for produkt/familie

  • Provides efficient installation and replacement without having to rewire which can reduce wiring errors
  • Includes Add-on Profiles in the Studio 5000 Logix Designer® application
  • Available with water- and corrosion-proof plastic and nickel-plated aluminum sealed housing
  • Offers rating for IP69K and NEMA 4X (when marked) for use without an enclosure
  • Includes LEDs for module and/or channel level alarms and diagnostics which can reduce machine downtime
  • Offers 1732DS ArmorBlock® Guard I/O™ modules for safety applications
  • 40;1585D-M4TBJM-5
Spesifikasjoner
Network Connection EtherNet/IP
I/O Type Self-Configuring
Number of Inputs/Outputs 16 Self-Configuring, Dual-Port, Quick Connect
Network Media 1585 Ethernet Cable,4 Conductors, M12 to RJ45 Straight Male,Teal Robotic TPE, 5 meters
Opprinnelsesland SG
Tolltariffnummer 85389099
Lengde 20.599
Høyde 4.902
Livssyklus Active
